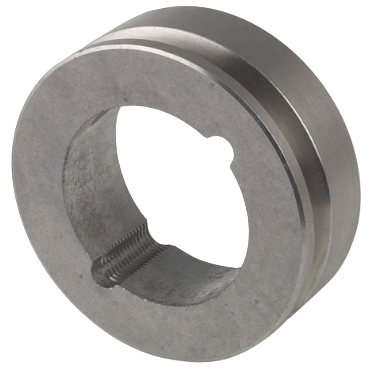

Dodge 1/3V6.91610 Fixed Diameter Single Groove Taperlock Sheave

Product Description

The Dodge 1/3V6.91610 is a fixed diameter single groove taperlock sheave designed for reliable performance in various applications. This product features a robust gray iron casting that offers durability while isolating shock loads and vibrations during operation. The sheave accepts a 3V belt size and is designed to accommodate a bore range from half an inch to one and eleven sixteenths inches.

• Isolates shock loads and vibration
• Minor misalignment capability
• No lubrication required

Product Highlights

This product is suitable for use in mechanical systems where reliable operation and minimal maintenance are required.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1/3V6.91610

Technical Specifications

• 3V Pitch Diameter: 6.85 inches
• Bushing Type: Taperlock
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.6875 inches
• Length Through Bore: 1 inch
• Outside Diameter: 6.90 inches
• Weight: 6.27 pounds
• EAN or UPC: 782475087235
