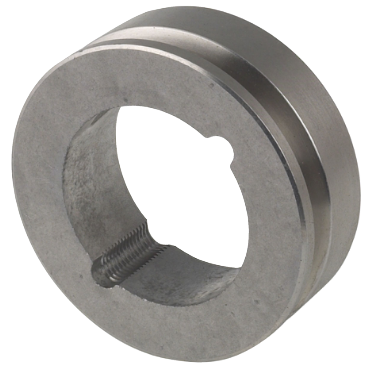

Dodge 1/3V3.651610 Fixed Diameter Single Groove Taperlock Sheave

Product Description

The Dodge Fixed Diameter Single Groove Taperlock Sheave with MPN 1/3V3.651610 is designed for reliable performance in various applications. This sheave is engineered to accommodate a 3V belt size, making it suitable for a variety of drive systems.

• 1 groove design for precise operation.
• 3.65 inches outside diameter for optimal fit.
• Bushing series 1610 for compatibility with Taperlock bushings.

Product Highlights

This sheave features capabilities for shock load isolation and minor misalignment, making it robust for demanding environments.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1/3V3.651610

Technical Specifications

• Overall Length: 1.06 inches
• Bushing Series: 1610
• Length Through Bore: 1 inch
• No. of Grooves: 1
• Belt Match: 1
• M: 1 inch
• Type: A1
• Bore Range [Min]: 0.5 inches
• Belt Size: 3V
• Bore Range [Max]: 1.6875 inches
• Outside Diameter: 3.65 inches
• Bushing Type: Taperlock
• 3V Pitch Diameter: 3.6 inches
• E (Knuckle Width): 0.09 inches
• Weight: 1.72 pounds
• EAN or UPC: 782475087143
