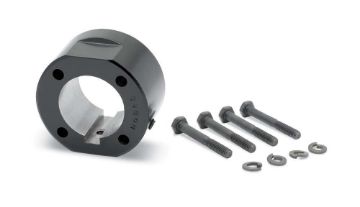

Dodge 022456 DOD 11SC-H X 1-5/16 HUB

Product Description

The Dodge 022456 DOD is an elastomeric sleeve coupling designed for effective torque transmission in various industrial applications. Built with a bore length of two point seven two inches, this coupling offers flexibility and reliability.

• Rated torque of eighteen thousand inch-pounds.
• Maximum speed reaches three thousand six hundred RPM.
• Four bolts for secure attachment.

Product Highlights

Ideal for use in medium to high torque applications. The elastomeric design provides durability while allowing for some misalignment.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 022456 DOD

Technical Specifications

• Bore Length: 2.7200 inches
• Rated Torque: 18000 inch-pounds
• Coupling Size: 11
• Coupling Type: Elastomeric
• Maximum Speed: 3600 RPM
• Shaft Spacing: Spacer
• Coupling Style: Sleeve
• Flange Material: Cast Iron
• Number of Bolts: 4
• Shaft Attachment: Bored To Size
• Tightening Torque: 900 inch-pounds
• Axial Misalignment: 0.2500 inches
• Angular Misalignment: 1.0000 degrees
• Parallel Misalignment: 0.0320 inches
• Bore Diameter (Actual): 1.3125 inches
• Horsepower Per 100 Rat: 28.6000 horsepower
