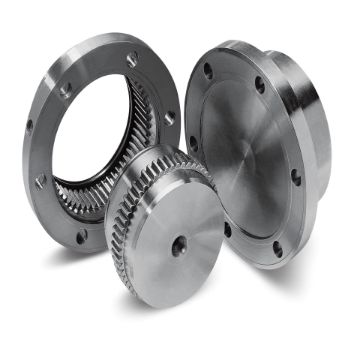

Dodge 013150 DOD Gear Coupling Hub 6.0 (Size 6) Replacement MPN

Product Description

The Dodge 013150 DOD is a gear coupling hub designed for various industrial applications. It is suitable for use in situations requiring dependable power transmission and reliable performance. This coupling is engineered to handle high torque and speed conditions.

• Ideal for heavy-duty applications requiring high torque
• Constructed for close-coupled shaft spacing
• Maximum speed rating of 2100 RPM

Product Highlights

This gear coupling hub is effective for applications that involve significant misalignment and varying shaft spacing. It efficiently transmits power while minimizing wear on other components.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 013150 DOD

Technical Specifications

• Bore Length: 7.4063 inches
• Lubrication: Grease
• Rated Torque: 750,000 inch-pounds
• Coupling Size: 6
• Coupling Type: Metallic
• Maximum Speed: 2100 RPM
• Shaft Spacing: Close Coupled
• Coupling Style: Gear
• Shaft Attachment: Rough Bore
• Maximum Temperature Rating: 250°F
• Minimum Temperature Rating: -30°F
• Angular Misalignment: 0.75 degrees
• Parallel Misalignment: 0.12 inches
• Horsepower Per 100 Rat: 1,190 horsepower
• Bore Diameter Maximum: 8.75 inches
• Bore Diameter Minimum: 4.00 inches
