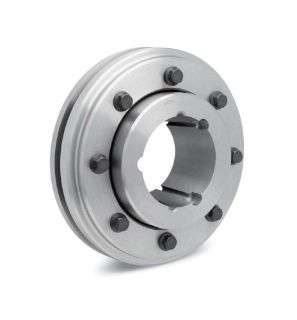

Dodge 011134 DOD PX140H Taper Lock Flg Assy 3535

Product Description

The Dodge 011134 is a PX140H Taper Lock Flange Assembly designed to offer reliable connection in mechanical applications. This product is suitable for use in elastomeric coupling scenarios. It provides durability and performance for various industrial uses.

• Compatible with Taper-Lock bushings.
• Rated torque capacity of 27590 inch-pounds.
• Max speed of 1840 RPM.

Product Highlights

Ideal for close coupled shaft spacing, ensuring effective torque transfer.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 011134 DOD

Technical Specifications

• Bore Length: 3.5000 inches
• Bushing Size: 3535
• Bushing Type: Taper-Lock
• Rated Torque: 27590 inch-pounds
• Maximum Speed: 1840 RPM
• Shaft Spacing: Close Coupled
• Coupling Style: Tire
• Flange Material: Cast Iron
• ATEX Certificate: Yes
• Max Temperature Rating: 180 Fahrenheit
• Min Temperature Rating: -45 Fahrenheit
• Angular Misalignment: 4 degrees
• Parallel Misalignment: 0.1250 inches
• Axial Misalignment: 0.3125 inches
