Dodge 006602 DOD 1050T Hub X 1-1/2

Product Description

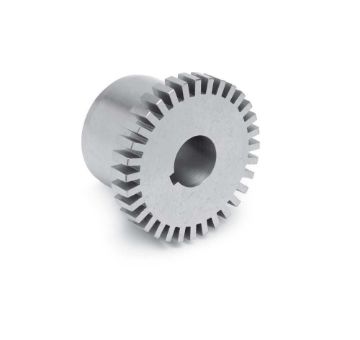

The Dodge 006602 is a 1050T hub designed for grid couplings. This part ensures reliable performance in mechanical drive systems. Built for close coupled applications, this hub offers efficient torque transmission.

• Rated torque capacity of three thousand eight hundred fifty inch-pounds.
• Designed for a maximum temperature rating of two hundred fifteen degrees Fahrenheit.
• Manufactured for precise shaft spacing with a bore diameter of one and a half inches.

Product Highlights

The Dodge 006602 hub is a metallic coupling component that provides ease of installation with its bored to size shaft attachment. It is suitable for applications requiring grease lubrication.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 006602 DOD

Technical Specifications

• Bore Fit: Clearance
• Bore Length: 2.4000 inches
• Lubrication: Grease
• Coupling Size: 1050
• Coupling Type: Metallic
• Shaft Spacing: Close Coupled
• Axial Misalignment: 0.3750 inches
• Angular Misalignment: 0.5000 degrees
• Parallel Misalignment: 0.0050 inches
• Bore Diameter: 1.5000 inches
• Horsepower Per 100 Ratio: 6.1100 horsepower
• Bore Tolerance Standard: AGMA 9002
• Maximum Temperature Rating: 215.0000 degrees Fahrenheit
• Minimum Temperature Rating: -22.0000 degrees Fahrenheit
