Dodge 006589 DOD 1030T HUB X 1-1/8

Product Description

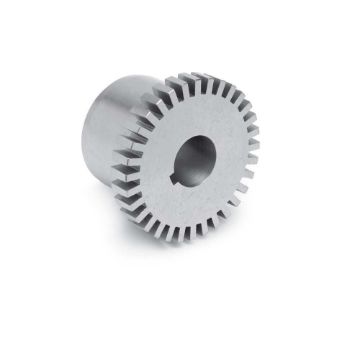

The Dodge 006589 is a grid coupling hub designed for effective torque transmission. This hub serves a key role in connecting two shafts while accommodating for misalignment. It is essential for use in various industrial applications that require reliable performance.

• Bore length of one point nine inches
• Rated torque of one thousand three hundred twenty inch-pounds
• Close coupled design for efficient space utilization

Product Highlights

This grid coupling hub is suitable for metallic coupling types and uses grease for lubrication. The design allows for both angular and parallel misalignments, ensuring smooth operation even in challenging conditions.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 006589 DOD

Technical Specifications

• Coupling Size: 1030
• Bore Diameter: 1.1250 inches
• Bore Length: 1.9000 inches
• Axial Misalignment: 0.3750 inches
• Angular Misalignment: 0.5000 degrees
• Parallel Misalignment: 0.0050 inches
• Lubrication: Grease
• Maximum Temperature Rating: 215.0000 Fahrenheit
• Minimum Temperature Rating: -22.0000 Fahrenheit
• Rated Torque: 1320.0000 inch-pounds
