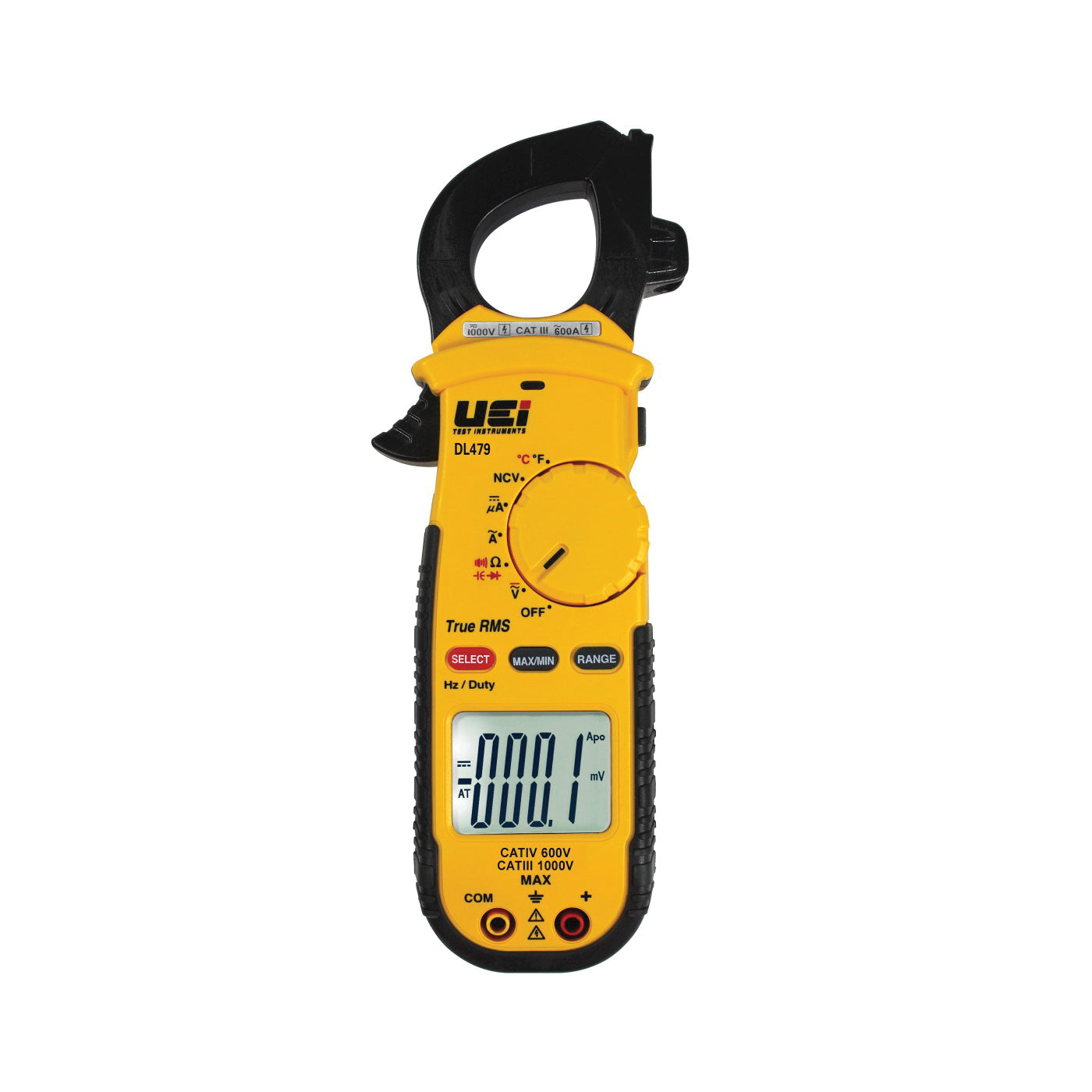

UEi Test Instruments DL479 HVAC/R Clamp Meter 750 VAC/600 VDC 600 A AC

Product Description

The UEi Test Instruments DL479 is a True RMS HVAC/R digital clamp meter designed for professionals. It can measure currents up to 600 A AC and voltages of 750 VAC and 600 VDC. The meter is equipped with a backlit display to ensure visibility in low light conditions. This clamp meter is crucial for various electrical checks, including resistance, microamps, capacitance, frequency, temperature, and non-contact voltage detection.

• True RMS measurements for accurate readings
• Backlight display for easy visibility
• Includes test leads and thermocouple probe

Product Highlights

The DL479 guarantees precision with a safety rating of CAT IV 600V and is equipped for a range of applications in HVAC/R fields. It operates efficiently within a temperature range of thirty-two to one hundred four degrees Fahrenheit.

Product Information

Standard Information

• Brand: UEi Test Instruments
• MPN: DL479

Technical Specifications

• Electrical Ratings: 750 VAC/600 VDC, 600 A AC, 2000 uA DC, 2000 uF
• Resistance: 60 mOhm
• Frequency Rating: 99.99 Hz to 9.999 kHz
• Jaw Capacity: 1.3 inches
• Counts: 6000
• Display Type: Backlight
• Power Source: (2) AAA Batteries
• Safety Rating: CAT IV 600V
• Operating Temperature: 32 to 104 degrees Fahrenheit
