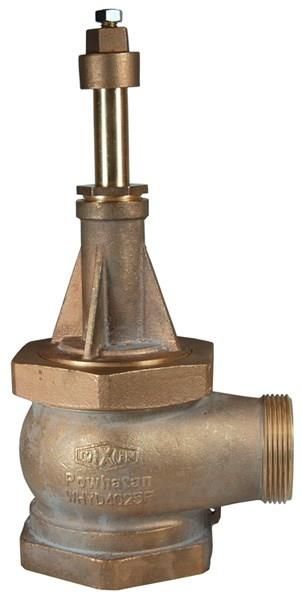

Dixon Valve WHYD4025F Wharf Hydrant 300 PSI

Product Description

The DIXON VALVE WHYD4025F wharf hydrant is used to provide a fire department outlet connection. It features a pentagon nut at the top of the spindle to discourage unauthorized use and is hydrostatically tested. Constructed from cast brass, this hydrant has a maximum operating pressure of 300 PSI.

• Pentagon nut at top of spindle discourages unauthorized use
• Hydrostatically tested
• Maximum operating pressure: 300 PSI at 70°F (21°C)

Product Highlights

The DIXON VALVE wharf hydrant provides a reliable fire department outlet connection with a durable cast brass construction.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: WHYD4025F

Technical Specifications

• Maximum Operating Pressure: 300 PSI
• Material: Cast Brass
• Height Open: 16.38"
• Height Closed: 14.25"
• Inlet: 4" female NPT
• Outlet: 2-1/2" male NST (NH)
• Brand: DIXON VALVE & COUPLING COMPANY, LLC
• MPN: WHYD4025F
• Product: Hydrant Valves & Boosters
• Inlet / Outlet: 4" female NPT / 2-1/2" male NST (NH)
• Application: Used for provide a fire department outlet connection
• Features: Pentagon nut at top of spindle discourages unauthorized use
• Part Number: WHYD4025F
• Operating Pressure [Max]: 300 PSI
• Type: Wharf Hydrant
• End Type: Female x Male
• Inlet Size: 4 in Female NPT
• Shape (Orientation): 90 Degree
• Ends Configuration: 4in Female NPT, 2-1/2in Male NST
• Material(s): Brass
• UPC: 89109705795
• Category: Business & Industrial
