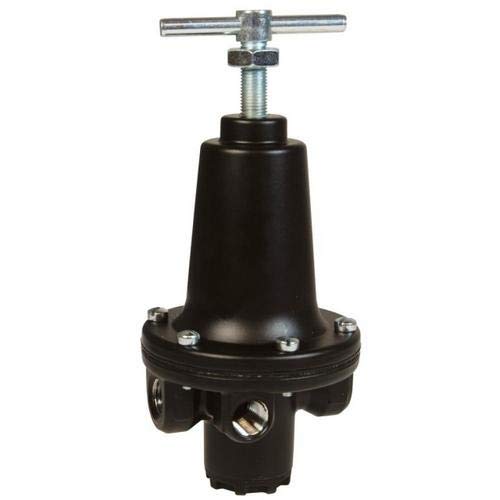

Dixon Valve R119-06C R119 Watts High-Flow Regulator 3/4 inches

Product Description

The DIXON VALVE R119-06C is a Watts 3/4" high-flow regulator. It features a relieving diaphragm, spring adjustment mechanism, and T-handle design. The regulator has a zinc body, acetal bottom plug, and aluminum spring cage. It is designed for air service only and has SCFM ratings at 150 PSIG inlet pressure.

• Relieving Diaphragm operated
• Spring adjustment mechanism
• T-handle design
• Zinc body

Product Highlights

The DIXON VALVE R119-06C regulator features a robust design with a zinc body and aluminum spring cage, suitable for high-flow air service applications.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: R119-06C

Technical Specifications

• Brand: Dixon
• Manufacturer: Dixon Valve
• Part ID / MPN: R119-06C
• Product Type: VALVE
• Series: Watts
• PSI: 300 PSIG
• Port Size: 3/4"
• Flow: 300 SCFM
• FRL Size: Standard
• Min. Temp (°F): 40
• Max Temp (°F): 120
• Construction: Zinc body; Acetal bottom plug; aluminum spring cage
• Maximum Operating Pressure: 300 PSIG
• Pressure Range: 2 - 125 PSIG
• Weight: 5.54 lb
• Break Quantity: 1
• Optional Package/Box Quantity: 1
• Temperature Range: 40°F to 120°F (4.4°C to 48.9°C)
