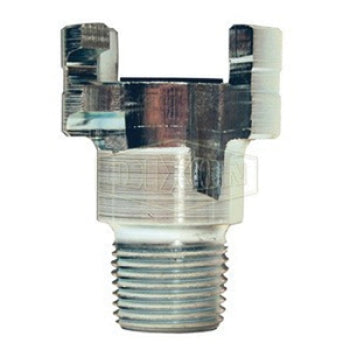

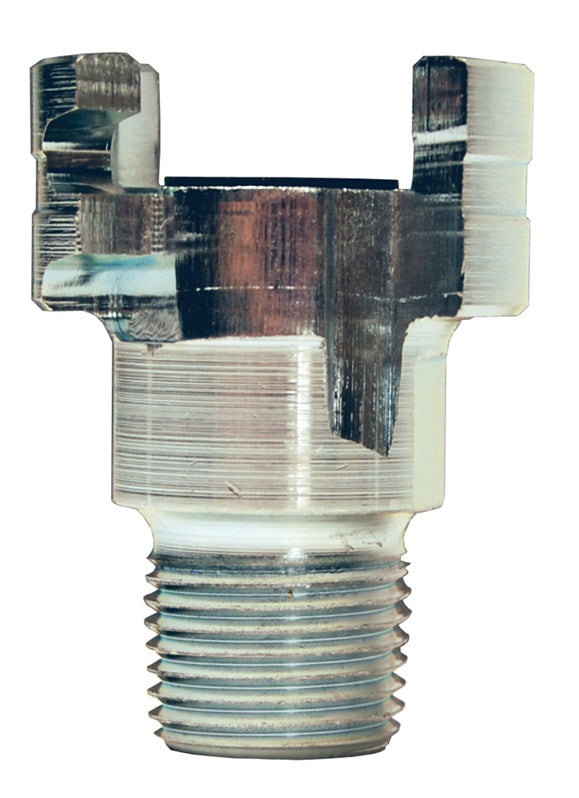

Dixon Valve P4M3 Pneumatic Quick Disconnect Plug

Product Description

The Dixon Valve P4M3 is a pneumatic quick disconnect plug. This product is suitable for air, water, and nitrogen lines. It has a three eighths inch male NPTF end configuration and a half inch body size. Made of steel, the plug is part of the Dual-Lock P-Series and designed for Thor Finger-Lock Interchange. It features Nitrile seals that work effectively within a specified temperature range.

• 3/8 male NPTF connection
• Made from steel with Nitrile seals
• Interchanges with National A, Campbell Double-Lock, and Thor PHC couplings

Product Highlights

This plug is designed for quick and reliable connections in various pneumatic applications.

Product Information

Standard Information

• Series: P-Series
• Shape: Straight

Technical Specifications

• Ends Configuration: 3/8 inch Male NPTF
• Material: Steel
• Seal Material: Nitrile
• Compatibility & Interchange: Interchanges with National A type, Campbell Double-Lock and Thor PHC series couplings
• Coupling Type: Plug/Male
• Body Size: 1/2
• Thread Size: 3/8
• Thread: NPTF
• Overall Length: 2 inches
• Max. Outside Diameter: 1.55 inches
• Wrench Flat: 7/8 inch
• Max. Operating Pressure: 300 PSI
• Burst Pressure: 2600 PSI
• Connection Type 1: Quick Disconnect
• Connection Size 1: 1/2 inch
• Connection Type 2: NPTF
• Gender 2: Male
• Connection Size 2: 3/8 inch
• Temperature Range: -40 to 250 Degrees F
• Weight: 0.25 lb
