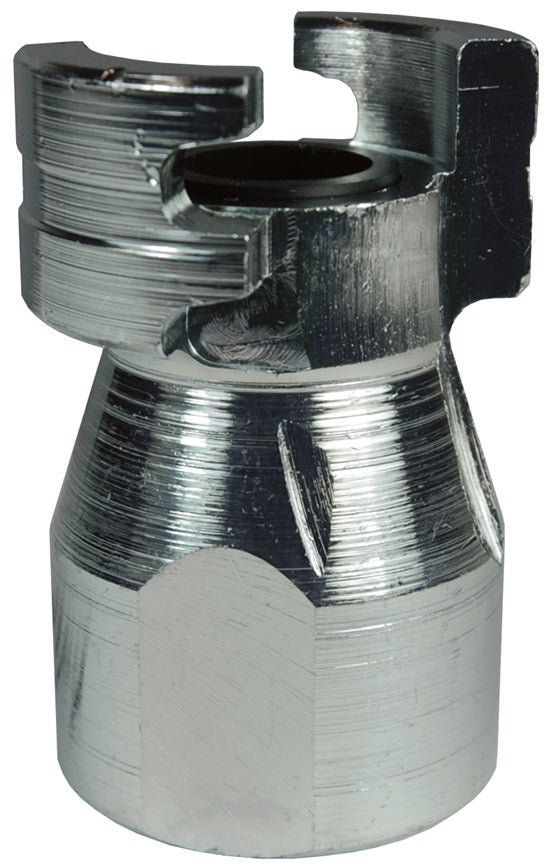

Dixon Valve P4F4 Pneumatic Quick Disconnect Coupling 1/2 Female NPTF

Product Description

The Dixon Valve P4F4 is a dual-lock P-Series pneumatic quick disconnect coupling plug. It comes with a half inch female NPTF end configuration and a half inch body size. Made of steel, this coupling features a Buna-N/Nitrile Rubber seal. It is ideal for quick connect and disconnect applications in pneumatic systems.

• Compatible with Thor Finger-Lock Interchange and National A type couplings.
• Constructed of durable steel material.
• Designed for optimal performance under varying conditions.

Product Highlights

This pneumatic coupling is efficient and reliable for pneumatic applications, ensuring a secure connection and fast operations.

Product Information

Standard Information

• Series: Dual-Lock P-Series
• Connection: 1/2 Female NPTF

Technical Specifications

• Shape: Straight
• Material: Steel
• Seal Material: Buna-N/Nitrile Rubber
• Body Size: 1/2
• Thread: NPTF
• Thread Size: 1/2
• Length: 2.25 inches
• Maximum OD: 1.55 inches
• Wrench Flat: 1-5/16 inches
• Maximum Operating Pressure: 300 PSI
• Burst Pressure: 2600 PSI
• Weight: 0.56 lb
• Operating Temperature: -40°F to 250°F
