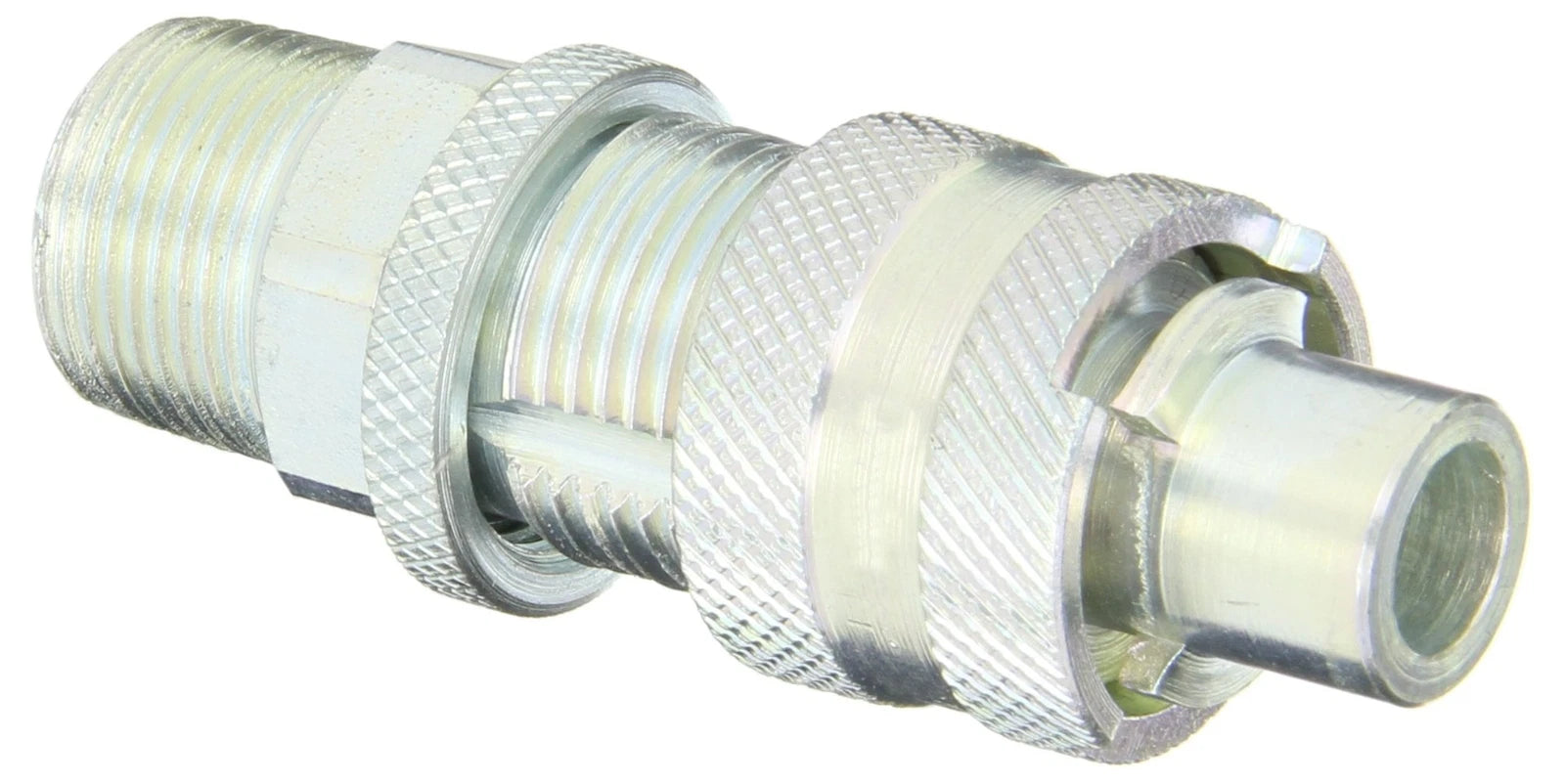

Dixon Valve N4M6-LS Dix-Lock N-Series Interchange Male Head x Male Threaded Safety-Lock End Plug

Product Description

The Dixon Valve N4M6-LS is a safety-lock end plug designed for pneumatic quick disconnect applications. This plug features a male NPTF thread and is made using machined solid bar stock adhering to strict standards. It has a locking sleeve for added safety and is compatible with various interchange types. This product is essential for professionals seeking reliable quick disconnect solutions.

• Male NPTF thread and male MIL-C-3486 QD interchange
• Maximum working pressure of 500 PSI (35 bar), burst pressure of 11,000 PSI (755 bar)
• Interchangeable with Bowes 51000-Series and other major brands

Product Highlights

This product supports numerous coupling applications while ensuring durability and safety.

Product Information

Standard Information

• Brand: Dixon
• MPN: N4M6-LS

Technical Specifications

• Material: Steel
• Body Size: 1/2 inches
• Thread Size: 3/4 inches
• Connection Type: Male/Male
• Maximum OD: 1.31 inches
• Length: 3.65 inches
• Hex: 1-3/16 inches
• Weight: 0.65 lb
• Operating Temperature: -40 Degrees F to 250 Degrees F
• Interchangeable with: Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
• Conforms to: MIL-C-3486 and A-A-50431A standards
• Shape: Straight
• Ends Configuration: 3/4in Male NPTF, 1/2in Male MIL-C-3486 QD Interchange
