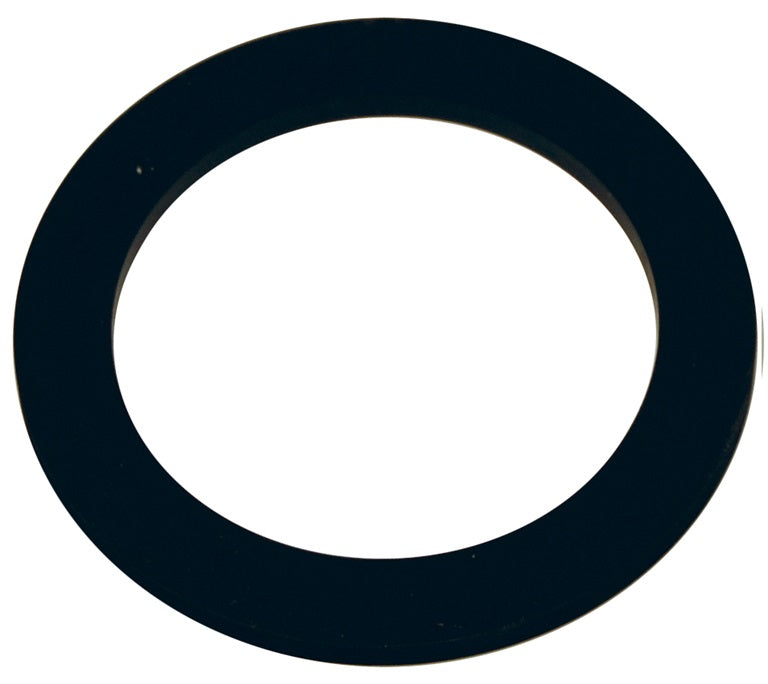

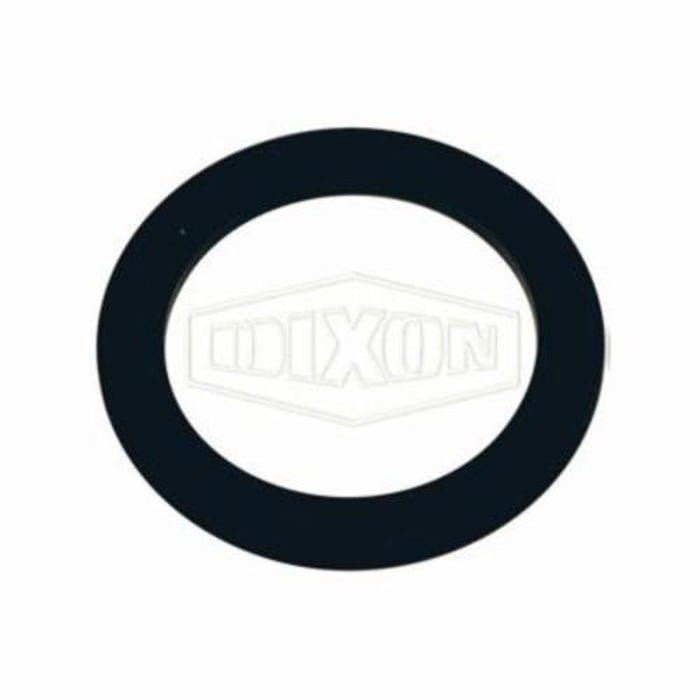

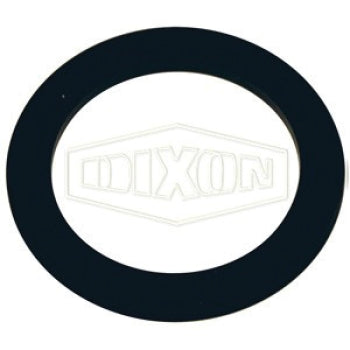

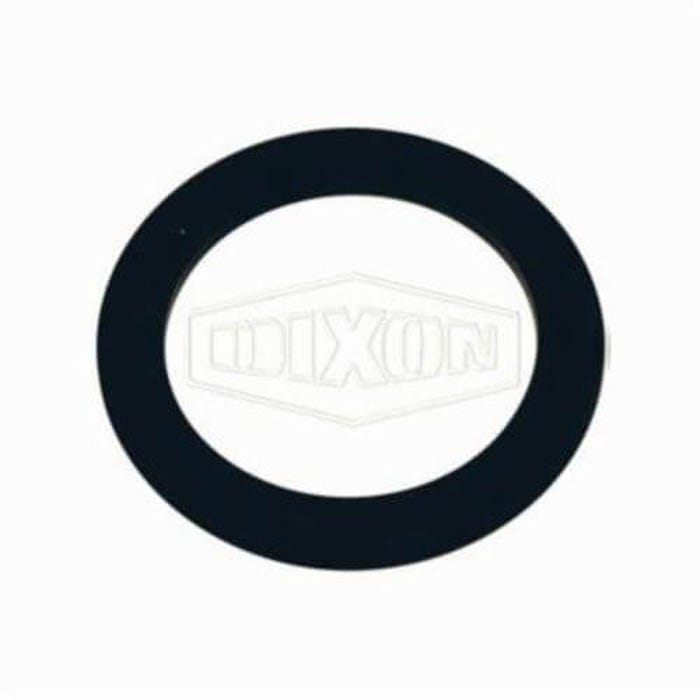

DIXON VALVE KRW20 Coupling Gasket

Product Description

The DIXON VALVE KRW20 is a coupling gasket suitable for NPSM couplings as well as suction and both long and short shank couplings. Its nominal size is one and a half inches, while the inside diameter measures one and five-sixteenths inches and the outside diameter is one and fifteen-sixteenths inches. This gasket has a thickness of one-eighth inch and is made from rubber.

• Nominal size: one and a half inches
• Inside diameter: one and five-sixteenths inches
• Outside diameter: one and fifteen-sixteenths inches

Product Highlights

The DIXON VALVE KRW20 gasket effectively creates a seal for various types of couplings, helping to prevent leaks. It is essential for efficient hydraulic systems and is a reliable choice for professional use.

Product Information

Standard Information

• Manufacturer Part Number: KRW20
• Manufacturer: Dixon Valve & Coupling

Technical Specifications

• UPC: 089109720286
• Height: 1.938 inches
• Nominal Size: 1-1/2 inches
• Material: Rubber
• Outside Diameter: 1-15/16 inches
• Inside Diameter: 1-5/16 inches
• Thickness: 0.125 inches
• Weight: 0.01 lb
• Used On: NPSM Couplings
• Seal Material: SBR (Styrene Butadiene)
