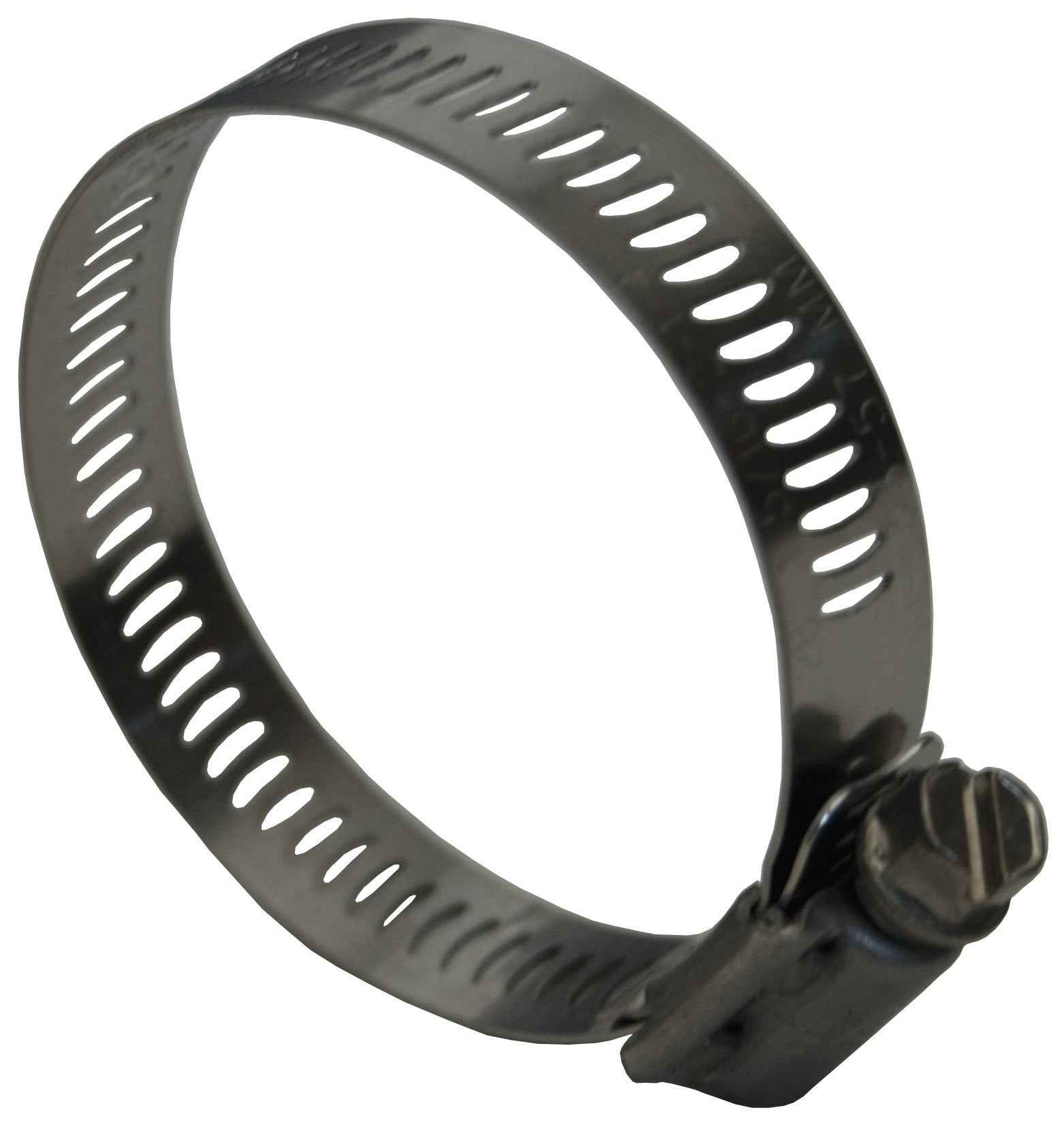

Dixon Valve HSS6 HSS Series Worm Gear Clamp 19/32 in to 25/32 in Hose OD

Product Description

The DIXON VALVE HSS6 is an HSS Series Worm Gear Clamp designed for hoses with an outer diameter of 19/32 in to 25/32 in. Features a four-piece construction with a stainless steel band and housing, offering corrosion resistance. Meets SAEJ1508 standards and supersedes Mil Spec WW-C-440B.

• Four-piece construction
• Stainless steel band and housing
• Corrosion-resistant

Product Highlights

Dixon Valve's HSS Series Worm Gear Clamp ensures secure and durable hose connections with its robust stainless steel design.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: HSS6
• Country of Origin: US

Technical Specifications

• Bolt/Screw Material: Stainless Steel 305
• Bolt/Screw Size [Nom]: 5/16 in
• Bolt/Screw Type: Hex Head
• Hose O.D. [Max]: 25/32 in
• Hose O.D. [Min]: 19/32 in
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: SAE 300 Series Stainless Steel
• SAE No.: SAEJ1508
• Torque [Nom]: 50 in lb
• Component Material: Stainless Steel screw
• Style: Style HSS
• Width: 1/2"
• Series: Style HSS
• Material(s): 300 Stainless Steel
• Clamp Width: 0.5
• Minimum Clamp I.D.: 0.4375
• Maximum Clamp I.D.: 0.78125
• Housing Material: Stainless 300 Series
• Type: Style HSS & Style HS
• Bolt Screw Material: Stainless Steel
• Screw Material: Stainless 410 Series
• Hose O.D. Range: 7/16 to 25/32
• Band Material: Stainless 300 Series
