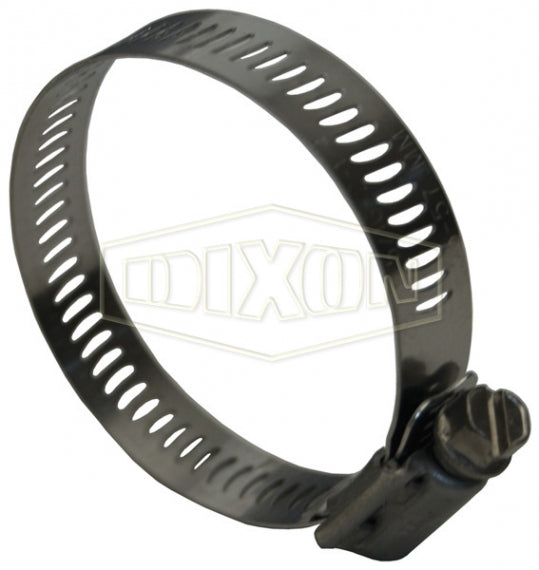

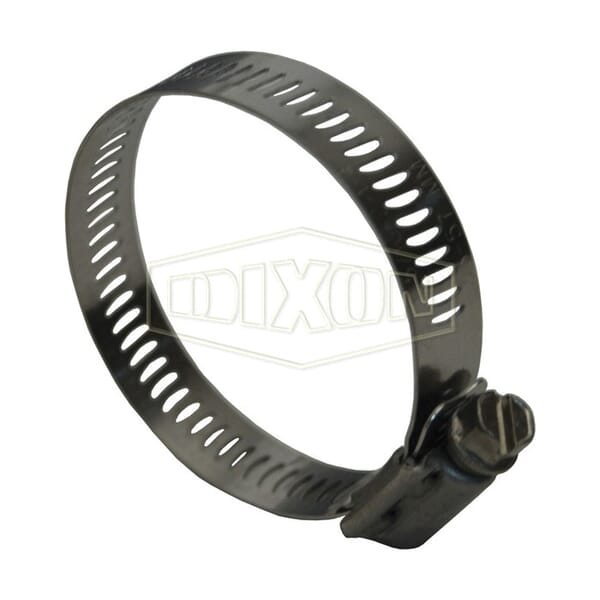

Dixon Valve HSS36 Worm Gear Clamp

Product Description

The Dixon Valve HSS36 is a worm gear clamp made to secure hoses effectively. This clamp features a four-piece design for durability and ease of use. A 5/16 slotted hex head screw enables tight fastening. The construction uses SAE 300 series stainless steel, ensuring resistance to rust and corrosion. The clamp fits hose outer diameters from one and fifty-two sixty-fourths to two and forty-eight sixty-fourths inches.

• Four-piece construction for strength and stability.
• 5/16 slotted hex head screw for secure fastening.
• Designed for hoses with outer diameters of 1-52/64 to 2-48/64 inches.

Product Highlights

This worm gear clamp is ideal for securing hoses in various applications. Its stainless steel material and sturdy construction make it suitable for both domestic and industrial uses.

Product Information

Standard Information

• Brand: Dixon
• MPN: HSS36

Technical Specifications

• Series: HSS
• Material: SAE 300 Series Stainless Steel
• Band Material: Stainless Steel
• Component Material: Stainless Steel screw
• Width: 1/2 inches
• Clamping Range: 1-13/16 to 2-3/4 inches
• Hose OD From: 1-52/64 (46 mm)
• Hose OD To: 2-48/64 (70 mm)
• Torque Rating: 50 in-lb
• Weight: 0.055 lb
• Country of Origin: US
• Domestic/Import: Domestic
• Grade: 300
• Standards and Approvals: SAE J1508
