Dixon Valve HSS248 Worm Gear Clamp 13-8/64 inches - 16 inches

Product Description

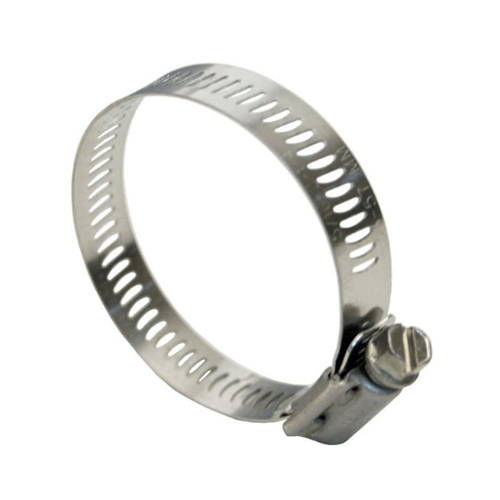

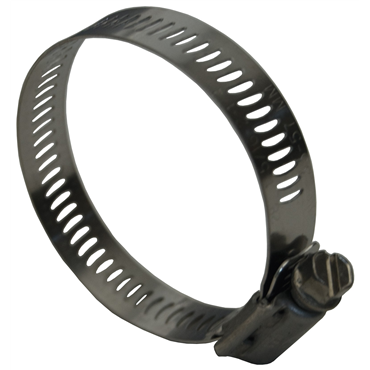

The DIXON VALVE HSS248 worm gear clamp features a four-piece construction with a 5/16" slotted hex head screw. Made with SAE 300-Series stainless steel band, housing, and screw. Meets SAEJ1508 which supersedes Mil Spec WW-C-440B. The clamp's band width is 9/16".

• Four-piece construction
• 5/16" slotted hex head screw
• SAE 300-Series stainless steel band, housing, and screw

Product Highlights

The DIXON VALVE HSS248 worm gear clamp is made from stainless steel and meets SAEJ1508 standards.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: HSS248

Technical Specifications

• Material: SAE 300 Series Stainless Steel
• Component Material: Stainless Steel screw
• Style: Style HSS
• Width: 9/16"
• Torque: 50 in. lbs.
• Hose OD To: 16" (406 mm)
• Hose OD From: 13-8/64" (334 mm)
• Hose O.D. Range: 13 1/8 to 16
• Housing Material: Stainless 300 Series
• Screw Material: Stainless 410 Series
• Type: Style HSS & Style HS
• Band Material: Stainless 300 Series
• Band Width: 0.5625 in
