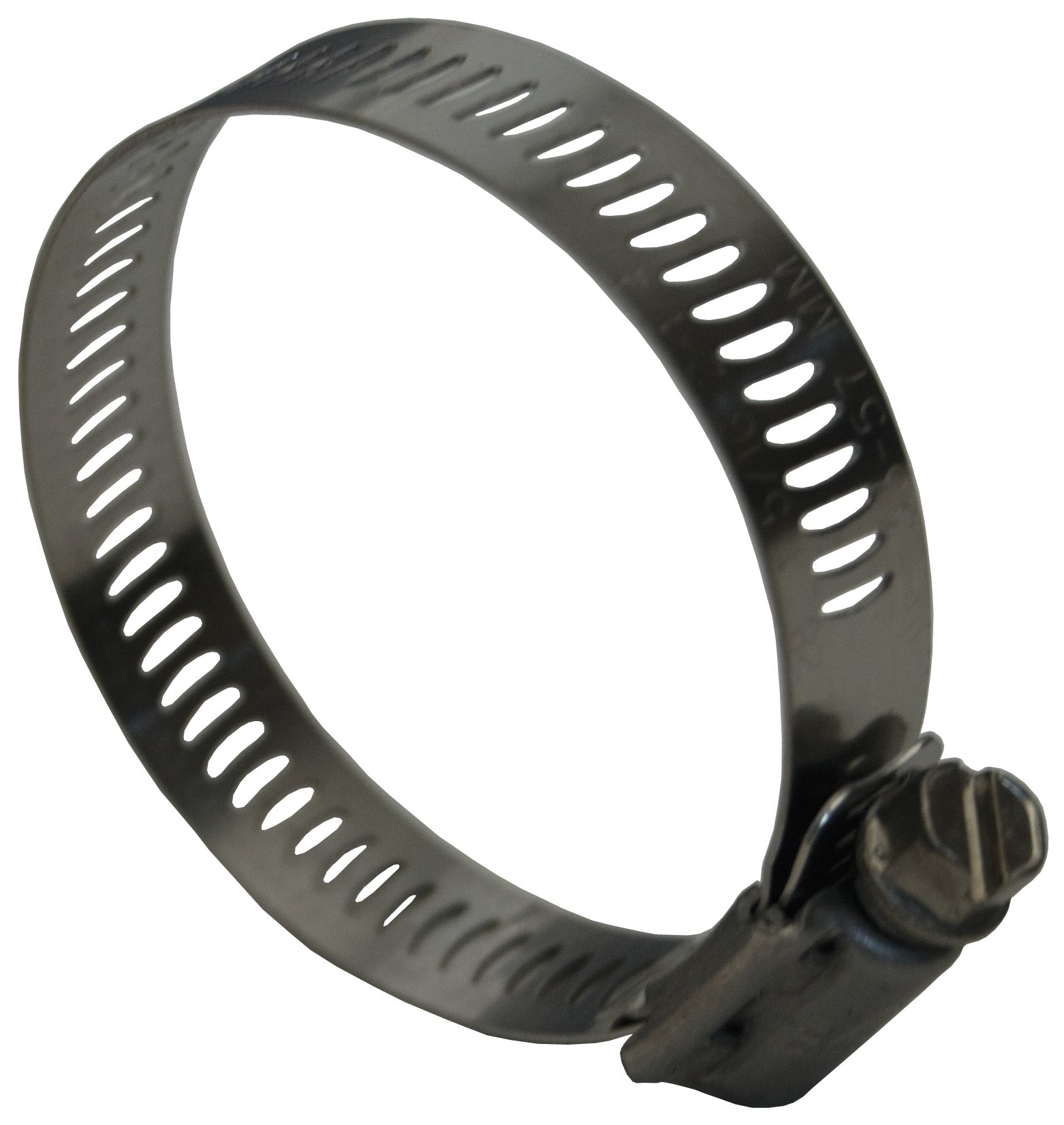

Dixon Valve HSS12 HSS Series Worm Gear Clamp 11/16 in to 1-1/4 in Hose OD

Product Description

The DIXON VALVE HSS12 HSS Series Worm Gear Clamp is designed for hoses with an outer diameter of 11/16 in to 1-1/4 in. Features a four-piece construction with a stainless steel band and housing, offering excellent corrosion resistance. Meets SAEJ1508 standards, superseding Mil Spec WW-C-440B.

• Four-piece construction
• Stainless steel band and housing
• Corrosion-resistant

Product Highlights

Durable worm gear clamp suitable for various applications requiring a secure and corrosion-resistant hose connection.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: HSS12
• Country of Origin: US

Technical Specifications

• Bolt/Screw Material: Stainless Steel 305
• Bolt/Screw Size [Nom]: 5/16 in
• Bolt/Screw Type: Hex Head
• Hose O.D. [Max]: 1-1/4 in
• Hose O.D. [Min]: 11/16 in
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: Stainless Steel 300
• SAE No.: SAEJ1508
• Torque [Nom]: 50 in lb
• Component Material: Stainless Steel screw
• Style: Style HSS
• Width: 1/2"
• Hose OD To: 1-16/64" (32 mm)
• Hose OD From: 44/64" (17 mm)
• Brand Name: Dixon Valve and Coupling
• Country of Origin: United States
• MFG Part # (OEM): HSS12
• Product Condition: New
• Construction: Four-piece construction
• Screw design: 5/16" slotted hex head
• Band, housing and screw: SAE 300 Series Stainless Steel
• Pack: Pack of 10 clamps
• Meets: SAEJ1508 which supersedes Mil Spec WW-C-440B
• Manufacturer: DIXON VALVE & COUPLING
• Manufacturer Model #: HSS12
• Hose od from (metric): 17mm
• Hose od to (metric): 32mm
• Specifications: meets SAEJ1508 which supersedes Mil Spec WW-C-440B
