Dixon Valve HS48 HS Series Worm Gear Clamp 2-9/16 inches to 3-1/2 inches Hose OD 1/2 inches W Stainless Steel Chrome Zinc-Plated Steel

Product Description

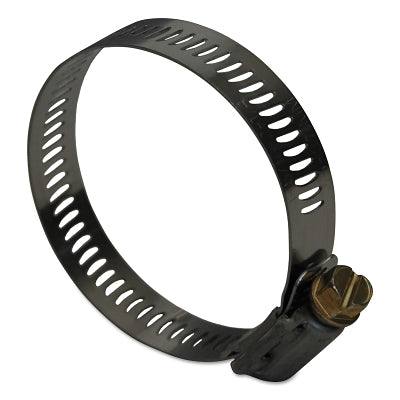

The Dixon Valve HS48 HS Series Worm Gear Clamp is designed for hose diameters from 2-9/16 inches to 3-1/2 inches. Built by Dixon Valve, this clamp is made from SAE 300 stainless steel and chrome zinc-plated steel.

• Four-piece construction
• Maximum recommended torque of 50 in.lb
• Stainless steel and chrome zinc-plated steel

Product Highlights

Durable worm gear clamp suitable for various hose diameters. Ideal for industrial and plumbing applications.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Country of Origin: US

Technical Specifications

• MPN: HS48
• Width: 1/2 inches
• Hose O.D. Max: 3-1/2 inches
• Hose O.D. Min: 2-9/16 inches
• Material: SAE 300 Stainless Steel and Chrome Zinc-Plated Steel
• Recommended Torque: 50 in.lb
• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inches
