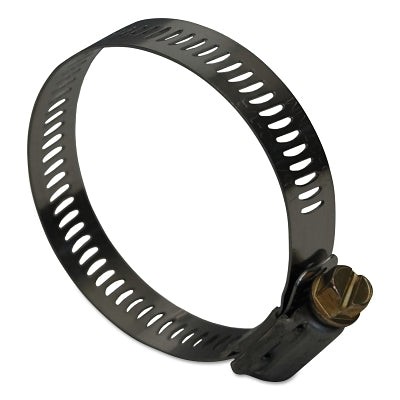

Dixon Valve HS36 Worm Gear Clamp 1/2 Inch Wide for Hose OD 1-13/16 to 2-3/4 Inches

Product Description

The Dixon Valve HS36 Worm Gear Clamp is designed for securing hoses with an outer diameter ranging from 1-13/16 inches to 2-3/4 inches. This clamp is crafted from stainless steel and chrome zinc-plated steel for durability and corrosion resistance.

• Stainless steel band and housing
• Slotted hex head bolt/screw
• Maximum recommended torque 50 in·lbs

Product Highlights

The Dixon Valve HS36 Worm Gear Clamp is perfect for various clamping applications in plumbing, automotive, and industrial settings.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• MPN: HS36
• UPC: None
• Country of Origin: US
• Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

• Weight: 0.06 lbs
• Height: 0.5 inches
• Width: 3 inches
• Length: 2.75 inches
• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inches
• Bolt/Screw Type: Slotted Hex Head
• Hose O.D. Max: 2-3/4 inches
• Hose O.D. Min: 1-13/16 inches
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: SAE 300 Stainless Steel Band and Housing
• Quantity: 10 EA/BOX
• Torque Nom: 50 in·lbs
• Width Nom: 1/2 inch
