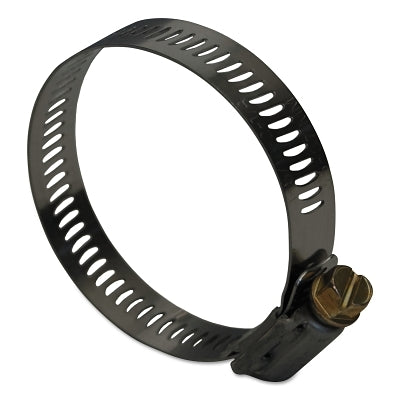

Dixon Valve HS28 HS Series Worm Gear Clamp, 1-5/16 In To 2-1/4 In Hose OD, 1/2 In Width, Stainless Steel, Chrome Zinc-Plated Steel

Product Description

The Dixon Valve HS28 is a worm gear clamp designed for hose OD sizes ranging from 1-5/16 inches to 2-1/4 inches. Made with stainless steel and chrome zinc-plated steel, this clamp ensures durability and reliability. It is part of the HS Series from Dixon Valve.

• Four-piece construction for reliability
• Maximum recommended torque: 50 inch-pounds
• Made with SAE 300 stainless steel band and housing

Product Highlights

Ideal for securing hoses in various applications with diameters from 1-5/16 inches to 2-1/4 inches. The worm gear drive offers a secure locking mechanism and is designed for ease of use.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Family: Dixon Valve HS Series Worm Gear Clamps

Technical Specifications

• MPN: HS28
• Hose O.D. Maximum: 2-1/4 inches
• Hose O.D. Minimum: 1-5/16 inches
• Width: 1/2 inch
• Material: SAE 300 Stainless Steel Band and Housing
• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inch
• Bolt/Screw Type: Slotted Hex Head
• Torque Nominal: 50 inch-pounds
• Locking Type: Worm Drive Buckle-Grooved Band
• Quantity: 10 EA/BOX
