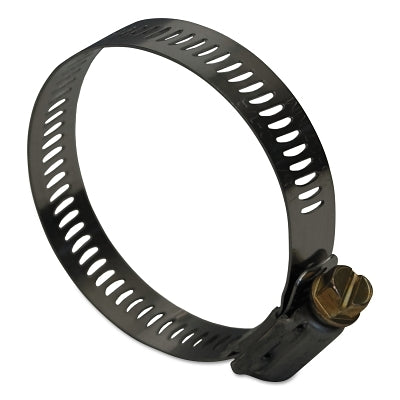

Dixon Valve HS24 Series Worm Gear Clamp 1-1/16 to 2 Inches Hose OD Stainless Steel

Product Description

The Dixon Valve HS24 Series Worm Gear Clamp is built for durability and reliability. This clamp features a 1-1/16 to 2 inches hose outer diameter, making it suitable for various applications. It is made from stainless steel with a chrome zinc-plated steel band and housing.

• Four-piece construction
• Maximum recommended torque is 50 inch-pound
• Made in the USA

Product Highlights

The Dixon Valve HS24 offers robust clamping power for hoses with outer diameters ranging from 1-1/16 to 2 inches. Its stainless steel construction ensures long-lasting performance and resistance to corrosion.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Country of Origin: US
• Prop 65 Warning Required: Y
• Prop 65 Warning Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inches
• Bolt/Screw Type: Slotted Hex Head
• Hose O.D. Max: 2 inches
• Hose O.D. Min: 1-1/16 inches
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: SAE 300 Stainless Steel Band and Housing
• Quantity: 10 EA/BOX
• Torque: 50 inch-pound
• Width: 1/2 inches
