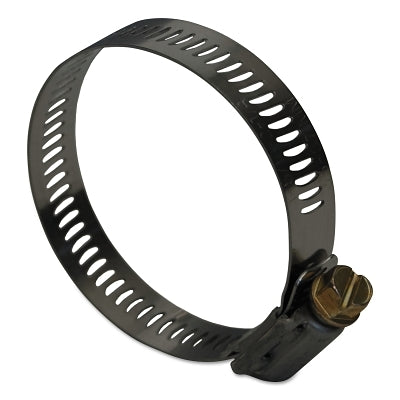

Dixon Valve HS20 HS Series Worm Gear Clamp 13/16 Inches to 1-3/4 Inches Hose OD 1/2 Inch W

Product Description

The Dixon Valve HS20 HS Series Worm Gear Clamp is designed for secure and stable hose connections. This clamp fits hose outer diameters (OD) ranging from 13/16 inches to 1-3/4 inches and is 1/2 inch wide.

• Stainless steel construction
• Chrome zinc-plated steel for durability
• Maximum recommended torque of 50 in-lb

Product Highlights

This hose clamp features four-piece construction for enhanced strength and reliability. It is ideal for various industrial applications where robust and secure hose connections are required.

Product Information

Standard Information

• Brand: Dixon Valve
• Model: HS20
• Country of Origin: US
• Prop 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

• MPN: HS20
• Material: SAE 300 Stainless Steel Band and Housing
• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inches
• Bolt/Screw Type: Slotted Hex Head
• Hose OD Max: 1-3/4 inches
• Hose OD Min: 13/16 inches
• Locking Type: Worm Drive Buckle-Grooved Band
• Torque: 50 in-lb
• Width: 1/2 inch
