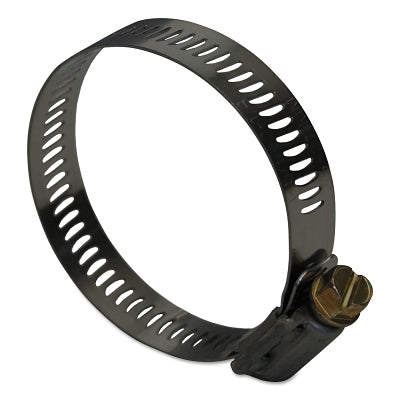

Dixon Valve HS188 HS Series Worm Gear Clamp 9-3/8 to 12-1/4 inches Hose OD 9/16 inches Width Chrome Zinc-Plated Steel

Product Description

The Dixon Valve HS188 HS Series Worm Gear Clamp is designed for a range of hose applications. Suitable for hose outer diameters from 9-3/8 inches to 12-1/4 inches, this clamp ensures secure fitting. Constructed from stainless steel with chrome zinc plating, it provides both durability and resistance to corrosion.

• Four-piece construction
• Maximum recommended torque of 50 inch-pounds
• Made in the US

Product Highlights

This worm gear clamp by Dixon Valve is ideal for various hose clamping needs. It features a slotted hex head and is built to withstand high torque.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: HS188
• Manufacturer: Dixon Valve
• Country of Origin: US

Technical Specifications

• Hose OD Max: 12-1/4 inches
• Hose OD Min: 9-3/8 inches
• Width: 9/16 inches
• Material: SAE 300 Stainless Steel Band and Housing
• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inches
• Bolt/Screw Type: Slotted Hex Head
• Locking Type: Worm Drive Buckle-Grooved Band
• Torque: 50 inch-pounds
• Quantity: 10 EA/BOX
• Prop 65 Warning Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
