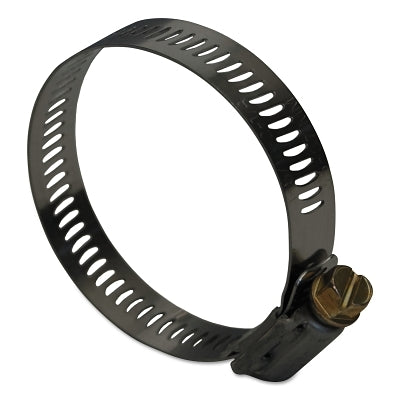

Dixon Valve HS16 HS Series Worm Gear Clamp 13/16 to 1-1/2 Inches Hose OD Stainless Steel Chrome Zinc-Plated Steel 1/2 Inch Width

Product Description

The Dixon Valve HS16 HS Series Worm Gear Clamp is designed for hose diameters ranging from 13/16 inches to 1-1/2 inches. This clamp features a 1/2 inch width and is constructed from stainless steel and chrome zinc-plated steel.

• Four-piece construction
• Maximum recommended torque 50 in-lb
• Durable stainless steel

Product Highlights

The Dixon Valve HS16 Worm Gear Clamp offers reliable hose clamping with its robust stainless steel band and housing. The chrome zinc-plated steel provides added durability and corrosion resistance, making it ideal for various applications.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: HS16

Technical Specifications

• UNSPSC: 31162906
• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inches
• Bolt/Screw Type: Slotted Hex Head
• Hose O.D. Max: 1-1/2 inches
• Hose O.D. Min: 13/16 inches
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: SAE 300 Stainless Steel Band and Housing
• Quantity: 10 EA/BOX
• Torque: 50 in-lb
• Width: 1/2 inches
• Weight: 0.05 lb
• Country Of Origin: US
