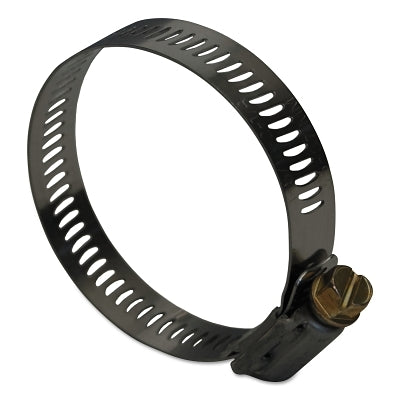

Dixon Valve HS12 Worm Gear Clamp 11/16 Inches to 1-1/4 Inches Hose OD 1/2 Inch Width Stainless Steel Chrome Zinc-Plated Steel

Product Description

The Dixon Valve HS12 Worm Gear Clamp is a reliable solution for securing hoses with a diameter range from 11/16 inches to 1-1/4 inches. This clamp is made from stainless steel with chrome zinc-plated steel for enhanced durability.

• Constructed from stainless steel
• Accommodates hoses 11/16 inches to 1-1/4 inches
• Stainless steel and chrome zinc-plated steel

Product Highlights

Durable construction, effective hose fastening, versatile size range

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Family: Dixon Valve HS Series Worm Gear Clamps
• UNSPSC: 31162906
• Country of Origin: US
• Hazmat: N
• Prop 65 Warning: Yes
• Prop 65 Warning Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 inch
• Bolt/Screw Type: Slotted Hex Head
• Hose O.D. Max: 1-1/4 inches
• Hose O.D. Min: 11/16 inches
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: SAE 300 Stainless Steel Band and Housing
• Quantity: 10 EA/BOX
• Torque Nominal: 50 in-lb
• Width Nominal: 1/2 inch
