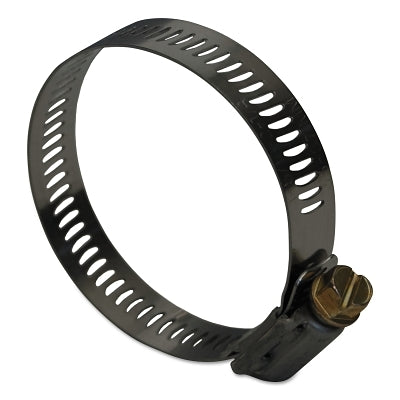

Dixon Valve HS10 HS Series Worm Gear Clamp 9/16 in to 1-1/16 in Hose OD 1/2 in W Stainless Steel Chrome Zinc-Plated Steel

Product Description

The Dixon Valve HS10 HS Series Worm Gear Clamp is a versatile and durable solution for securely fastening hoses. Designed for hoses with an outer diameter of 9/16 inch to 1-1/16 inch, this clamp is made from stainless steel and chrome zinc-plated steel, ensuring long-lasting performance.

• Four-piece construction
• Maximum recommended torque of 50 in-lb
• Made in the USA

Product Highlights

This Dixon Valve HS Series Worm Gear Clamp is ideal for various clamping applications, featuring stainless steel and chrome zinc-plated steel for added durability.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: HS10
• Category: Fasteners, Clamps & Straps

Technical Specifications

• Bolt/Screw Material: SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
• Bolt/Screw Size: 5/16 in
• Bolt/Screw Type: Slotted Hex Head
• Hose O.D. (Max): 1-1/16 in
• Hose O.D. (Min): 9/16 in
• Locking Type: Worm Drive Buckle-Grooved Band
• Material: SAE 300 Stainless Steel Band and Housing
• Quantity: 10 EA/BX
• Torque [Nom]: 50 in-lb
• Width [Nom]: 1/2 in
