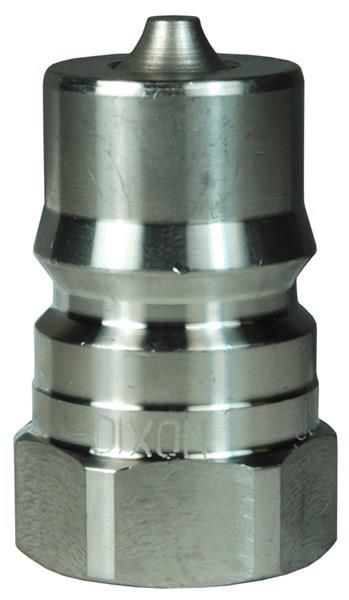

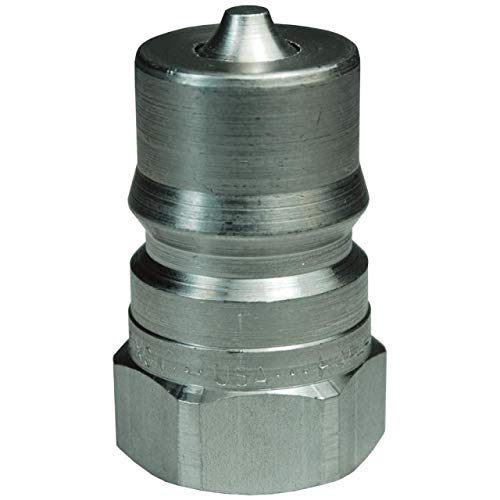

Dixon Valve H2F2-SS H-Series Interchange Female Plug (Pack of 5)

Product Description

Dixon Valve H2F2-SS is an H-Series ISO-B interchange female plug manufactured from 316 stainless steel for quick-disconnect hose and hydraulic applications. The H2F2-SS features a poppet-style shut-off valve to reduce fluid loss, machined solid-bar construction with stainless steel internal components, and ISO 7241 Series B dimensional compatibility for interchange with multiple industry series. Rated for 3500 PSI working pressure and a -40 F to 250 F temperature range.

• Constructed from 316 stainless steel; machined from solid bar stock with stainless steel balls, retaining rings and springs

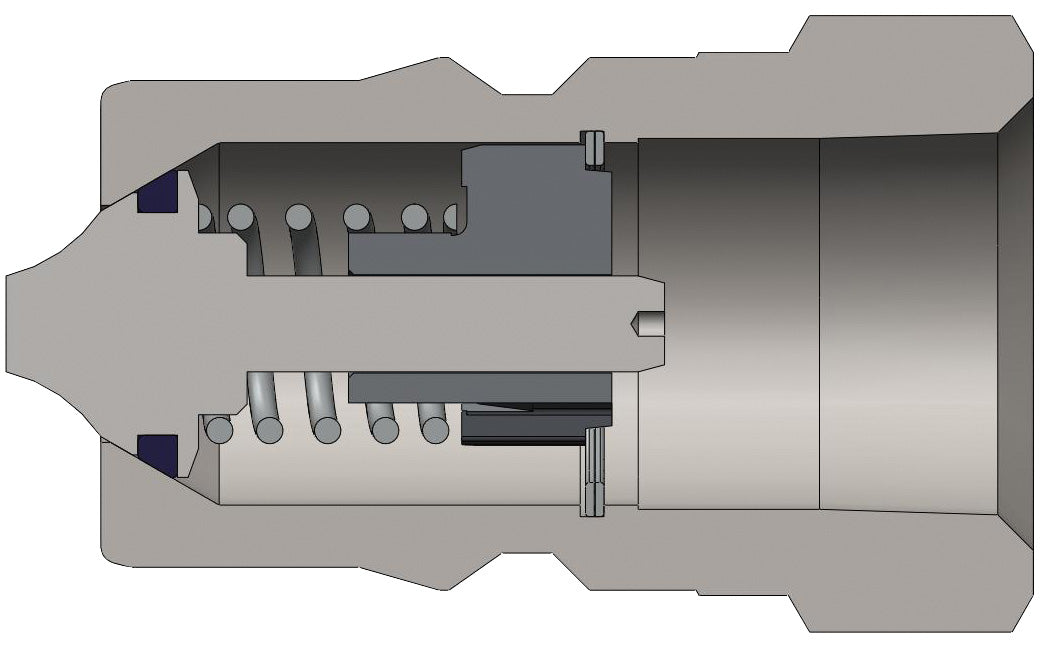

• Poppet-style shut-off valve; meets ISO 7241 Series B and is interchangeable with multiple manufacturer series
• 1/4" body with 1/4"-18 female NPTF thread; rated 3500 PSI working and 33,000 PSI burst pressure

Product Highlights

H-Series ISO-B 316 stainless steel female plug, 1/4" NPTF, 3500 PSI working, pack of 5

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: H2F2-SS

Technical Specifications

• Brand: Dixon Valve
• Manufacturer: Dixon Valve & Coupling
• Manufacturer Part Number: H2F2-SS
• Product Type: H-Series Interchange Female Plug
• Series: H-Series / ISO-B
• Pack Quantity: 5
• Material: 316 Stainless Steel
• Construction: Machined components from solid bar stock; stainless steel internal components (balls, retaining rings, springs)
• Thread: Female NPTF
• Thread Size: 1/4"-18
• Body Size: 1/4"
• Maximum Outside Diameter: 0.83 in (21.1 mm)
• Length: 1.55 in (39.4 mm)
• Hex Size: 3/4 in
• Maximum Operating Pressure: 3500 PSI (240 bar)
• Burst Pressure: 33000 PSI (2200 bar)
• Temperature Range: -40 F to 250 F (-40 C to 121 C)
• Weight: 0.088 lb
• Interchange / Compatibility: Meets ISO 7241 Series B; interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster HNV, Aeroquip/Eaton FD45, Stucchi IRB/IRBO/IRBX
• Safety Notes: Contains lead; California Proposition 65 warning applies
• GTIN / EAN: 0089109445639
• UPC: 089109445639
• ASIN: B08LQKS36Y
