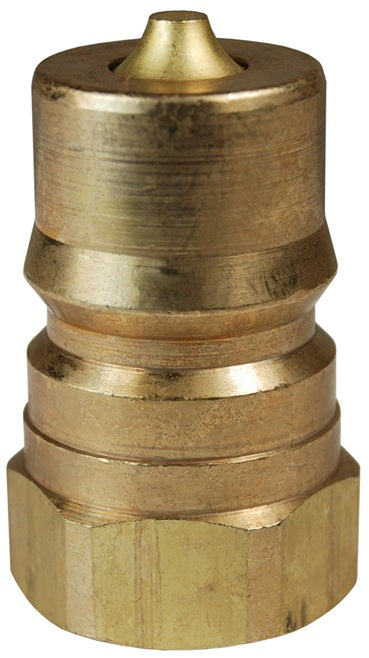

Dixon Valve H2F2-B Hydraulic Quick Disconnect Coupling

Product Description

The Dixon Valve H2F2-B is a hydraulic quick disconnect coupling designed for ease of use in various systems. This coupling features a one-fourth female NPTF thread and a one-fourth ISO-B interchange for versatile applications. Constructed from durable brass, it is ideal for high-pressure scenarios, preventing fluid loss during disconnection.

• 1/4 Female NPTF thread
• 1/4 ISO-B interchange
• Made from brass for durability

Product Highlights

This coupling is suitable for hydraulic systems where quick detach is necessary without loss of fluid. It operates within a maximum pressure of three thousand PSI, making it safe for demanding environments.

Product Information

Standard Information

• Series: H-Series
• Shape (Orientation): Straight

Technical Specifications

• Material: Brass
• Maximum Operating Pressure: 3000 PSI (200 bar)
• Weight: 0.09 lb
• Body Size: 1/4
• Temperature Range: -40°F to 400°F
• Burst Pressure: 15000 PSI (1000 bar)
• Thread Size: 1/4-18
• Length: 1.55 inches
• Hex: 3/4 inches
• Maximum OD: 0.83 inches
• Thread: Female NPTF
• Ends Configuration: 1/4in Male ISO-B QD Interchange, 1/4in Female NPTF
