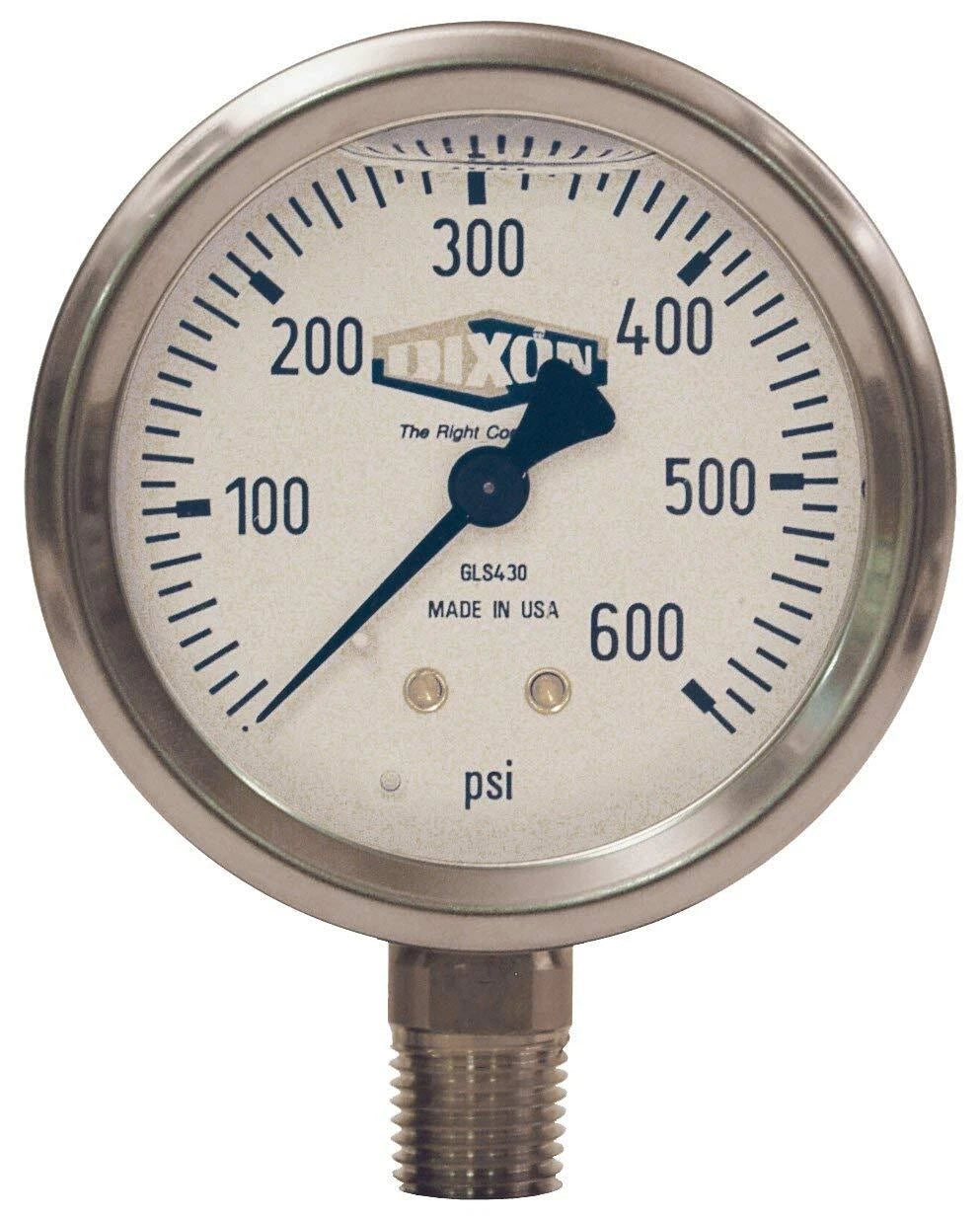

Dixon Valve GLS430 Liquid Filled Stainless Case Gauge

Product Description

The Dixon Valve GLS430 is a liquid-filled gauge ideal for applications in pumps, hydraulic systems, pneumatic systems, compressors, and machine tools. It features a face diameter of two and one-half inches and a quarter inch lower mount connection. Constructed with a stainless steel case, this gauge includes a copper alloy bourdon tube. It is built to resist shock, vibration, and pulsation.

• Two and one-half inch face diameter
• Quarter inch NPT brass connection
• Pressure range of zero to six hundred PSI

Product Highlights

This gauge is suitable for various applications requiring precise pressure measurement in demanding environments.

Product Information

Standard Information

• Manufacturer Part Number: GLS430
• Pressure Range: 0-600 PSI

Technical Specifications

• Face Size: 2.5 inches
• Mounting Type: 1/4 inch lower mount
• Weight: 0.51 lb
• Figure Interval: 100
• Minor Gradient: 10
• Operating Temperature: -40°F to 150°F (-40°C to 65.6°C)
• Case Material: 304 Stainless Steel
• Accuracy: Grade A (±2-1-2% accuracy)
