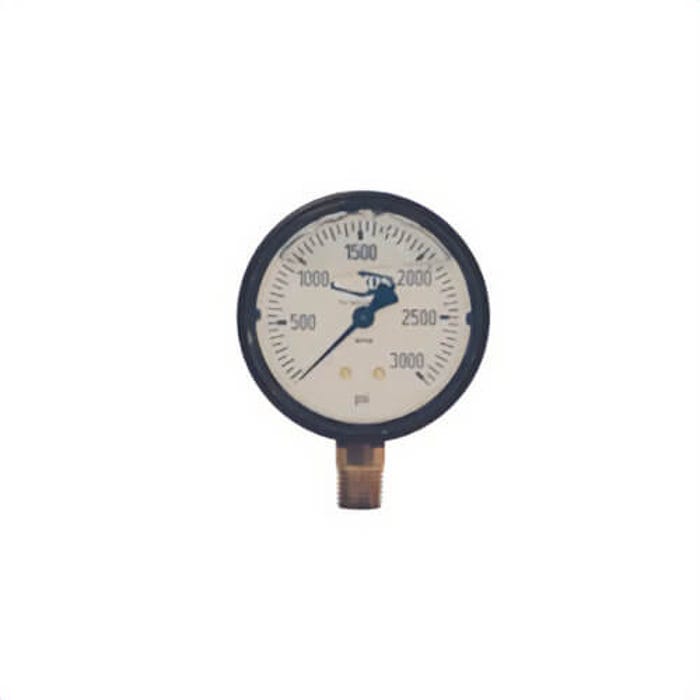

Dixon Valve GLP550 Liquid Filled ABS Case Gauge 0-3000 PSI 2-1/2inch

Product Description

The Dixon Valve GLP550 is a liquid filled ABS case gauge with a pressure range of 0 to 3000 PSI. This gauge features a two and a half-inch face and a quarter-inch lower mount. It is built for reliable performance in tough environments, making it ideal for various applications such as pumps, hydraulic systems, pneumatic systems, compressors, and machine tools.

• Pressure measurement up to 3000 PSI
• Designed for rugged conditions and high reliability
• Conforms to ASME B40.100, Grade B accuracy standards

Product Highlights

This gauge is known for its durability and precision, featuring an ABS plastic case that can withstand challenging conditions.

Product Information

Standard Information

• Manufacturer: Dixon Valve & Coupling
• Series: GLP Series

Technical Specifications

• Pressure Range: 0-3000 PSI
• Face Size: 2-1/2 inches
• Material: ABS Plastic
• Mount Type: 1/4 inch Lower Mount
• Accuracy: ASME B40.100, Grade B (± 3-2-3%)
• Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Connection Size: 1/4 inch
• Package Quantity: 1 Each
