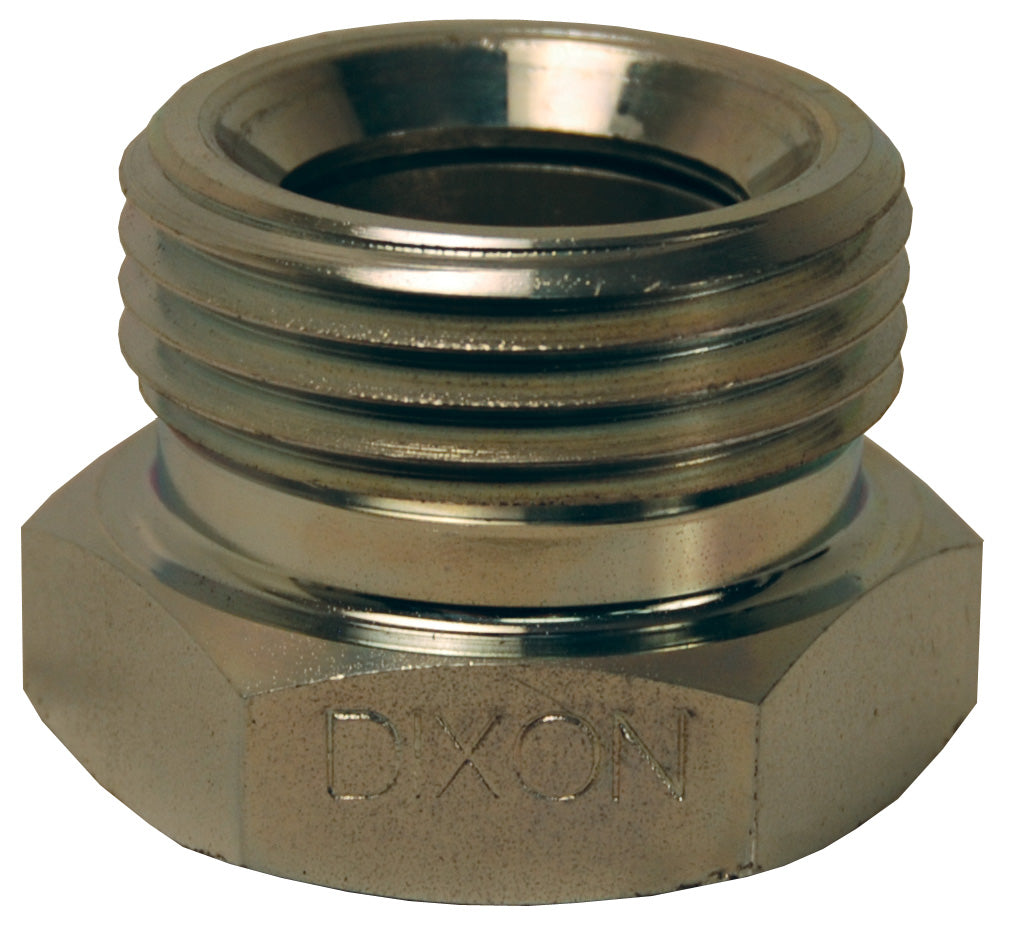

Dixon Valve GJ55 Ground Joint Air Hammer Female Spud 3/4 Inch Female NPT

Product Description

The DIXON VALVE GJ55 is a Ground Joint Air Hammer Female Spud. It features a rounded steel head of the stem designed to fit concave inserts in spuds for superior sealing. This compact coupling is constructed from plated steel with a copper seat and includes 3/4 inch Female NPT threads. It is suitable for air hammer applications, ensuring a secure connection.

• Rounded steel head of stem fits concave inserts in spuds for superior sealing.
• Constructed from durable plated steel for longevity.
• Features a 3/4 inch Female NPT thread for reliable connections.

Product Highlights

Compact plated steel female spud with copper seat for air hammer applications.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: GJ55

Technical Specifications

• Brand: DIXON VALVE
• MPN: GJ55
• Material: Plated Steel
• Thread Type: Coarse Nut
• Seat Material: Copper
• Female Thread Type: NPT
• Female Thread Size: 3/4"
• Coarse Nut Thread Size: 1-31/64" OD x 8 TPI
• Shape: Straight
• Ends Configuration: 3/4in Female NPT, 3/4in GJ Wing Nut Thread
• Style: Compact
• Hose I.D.: 3/4"
• Application: Air Hammers
