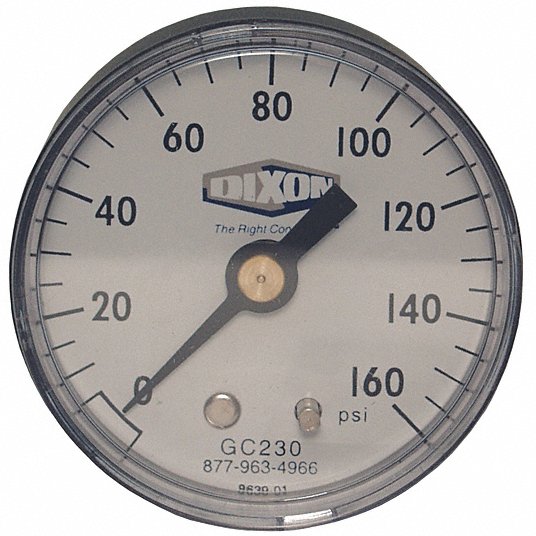

Dixon Valve GC230 ABS Standard Dry Gauge

Product Description

The Dixon Valve GC230 is a precise gauge made for use in various applications like pumps, hydraulic and pneumatic systems, compressors, and machine tools. This gauge utilizes a PowerFlex movement design paired with a polyester segment to enhance its resistance against shock, vibration, and pulsation.

• Constructed with a durable ABS plastic case and a polycarbonate crystal.
• Features a black aluminum pointer for easy reading.
• Includes a 2 inch face and a 1/4 inch center back mount.

Product Highlights

Ideal for scenarios requiring a non-corrosive movement, this gauge provides accurate pressure readings within a defined range.

Product Information

Standard Information

• Brand: Dixon
• Part Number: GC230

Technical Specifications

• Material: ABS Plastic
• Type: Gauges
• Unit Count Type: ea
• Unit Count: 1
• Accuracy: Grade B (± 3-2-3%)
• Pressure Range: 0-160 PSI
• Figure Interval: 20
• Graduation Interval: 5
• Operating Temperature: -40 deg. F / 150 deg. F (-40.00 deg. C / 65.56 deg. C)
• Weight: 0.1900 lbs.
