DIXON VALVE G600-F-AL Global Type F Adapter

Product Description

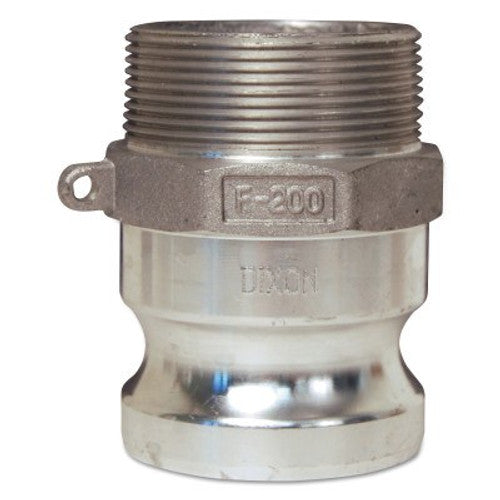

The DIXON VALVE G600-F-AL is a Global Type F adapter suitable for liquid applications. It features a male cam and groove end and a male NPT end, both sized at six inches. This adapter is made from durable aluminum and complies with A-A-59326D interchange standards. To use, slide the adapter into the coupler and press down the cam levers for a secure connection. To disconnect, lift the cam arms and remove the adapter.

• Body material is aluminum.
• Maximum operating pressure is 75 psi at 70 degrees F (21 degrees C).
• Interchanges with all products to A-A-59326D.

Product Highlights

The product offers a reliable and secure connection for various liquid handling needs.

Product Information

Standard Information

• Body Material: Aluminum
• Connection Type: Male/Male

Technical Specifications

• Male Quick Size: 6 inches
• Male Thread Size: 6 inches
• Operating Pressure (Max): 75 psi
• Operating Temperature (Max): 70 degrees F (21 degrees C)
• Product Type: Global Cam & Groove Type F Adapters
• Shape: Round
• Cam Type: Type F
• Configuration: 6-inch Male NPT, 6-inch Male Cam & Groove
• Construction: Made to Dixon specifications and branded Dixon
