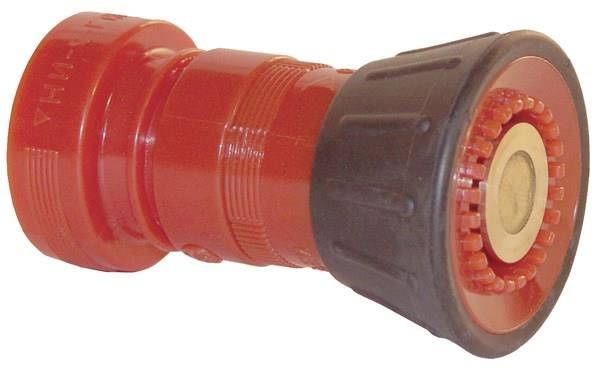

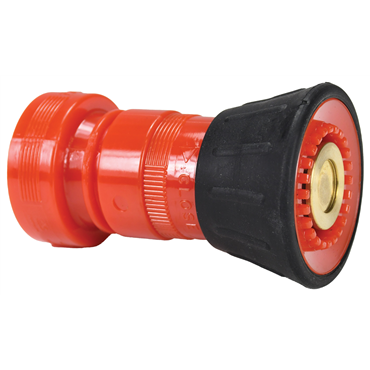

Dixon Valve FNB100NST Polycarbonate Fog Nozzle with Bumper 1 inches NST (NH)

Product Description

The DIXON VALVE FNB100NST is a polycarbonate fog nozzle with a bumper, featuring a brass stem and designed for water-only applications. It offers adjustable settings for shutoff, straight stream, and fog. The nozzle is constructed from red polycarbonate and has a 1" NST (NH) thread.

• Shutoff - straight stream - fog
• For use with water only
• 90 0 B0 Spray GPM @100 PSI: 30.9

Product Highlights

Polycarbonate fog nozzle with bumper, ideal for water applications with adjustable stream settings.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: FNB100NST

Technical Specifications

• Maximum Operating Pressure: 100 PSI (water only) at 70 0 B0F (21 0 B0C)
• Weight: 0.44 lb
• Size: 1"
• Material: Polycarbonate
• Thread: NST (NH)
• Flow: 90 0 B0 Spray GPM at 100 PSI= 11.4
• GPM: 11.4 gal/min
• Length: 4 5/32 in
• Type: Fog Nozzle
• Thread Type: NST (NH)
• Brand: DIXON VALVE & COUPLING COMPANY, LLC
• Product Type: Simple product
• MPN: FNB100NST
• Product: Fog Nozzles
• PSI: 100 PSI
• Construction: Red polycarbonate with brass stem
• Application: For use with water only.
• Manufacturer Part Number: FNB100NST
• Manufacturer: Dixon Valve & Coupling
• Brands: DIXON
• Length (in): 4.5
• Height (in): 3.156
