Dixon Valve FC3103 Female Cplrx Hose Sha 3 inches

Product Description

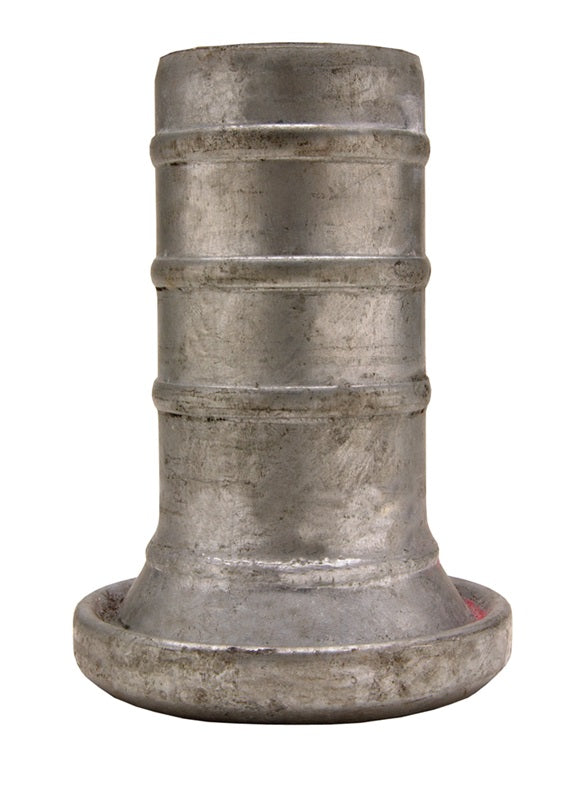

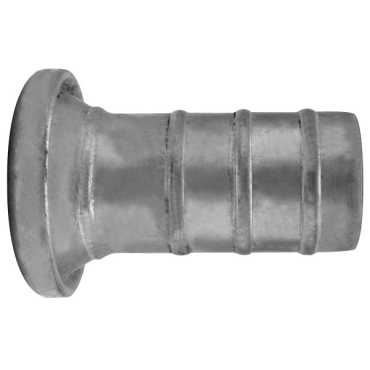

The DIXON VALVE FC3103 is a Type B female x hose shank fitting, primarily used on irrigation and suction lines. It features Bauer style locks on the male side and a double pin locking lever for smooth closing action. The fitting is hot dipped and galvanized, and a gasket is included on the female half.

• Bauer style locks on the male side.
• Has a double pin locking lever for smooth closing action.
• Gasket included on female half.

Product Highlights

This galvanized steel fitting is equipped with a safety pin to prevent accidental openings and is ideal for irrigation and suction applications.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: FC3103

Technical Specifications

• Size: 3"
• Material: Galvanized Steel
• Shape (Orientation): Straight
• Ends Configuration: 3in Female Bauer - Type B, 3in Hose Barb
• Brand: DIXON VALVE & COUPLING COMPANY, LLC
• MPN: FC3103
• Product: Female Ends
• Construction: Hot dipped, galvanized; gasket included
• Application: The primary application for these fittings are irrigation and suction lines.
• Features: Bauer style
• Safety Notes: These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.
• Main Category: Pipe, Fittings, and Flanges
