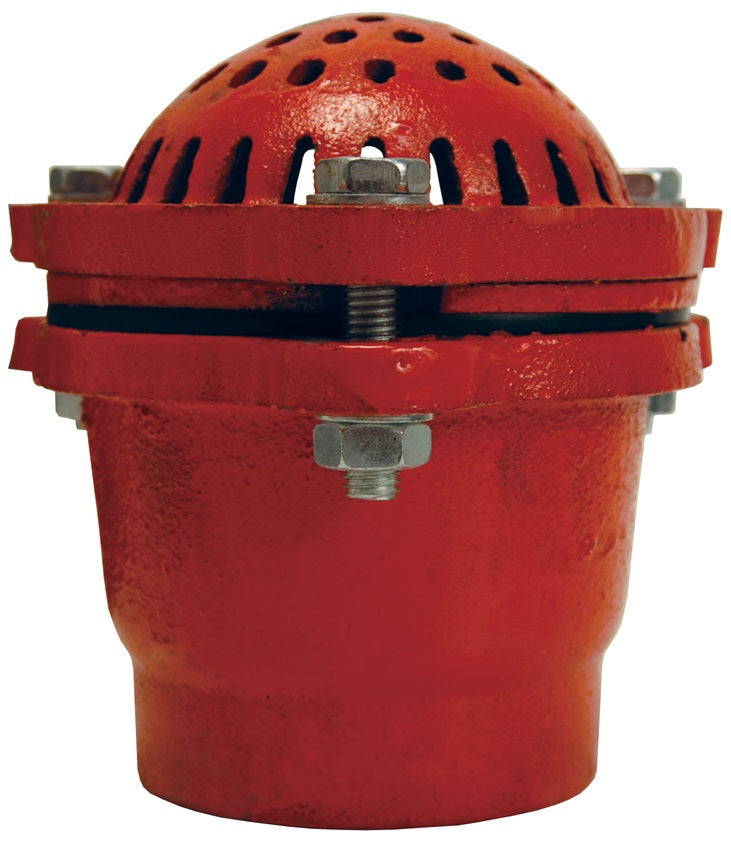

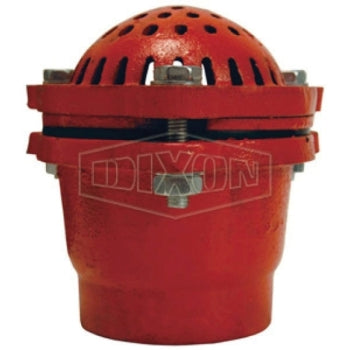

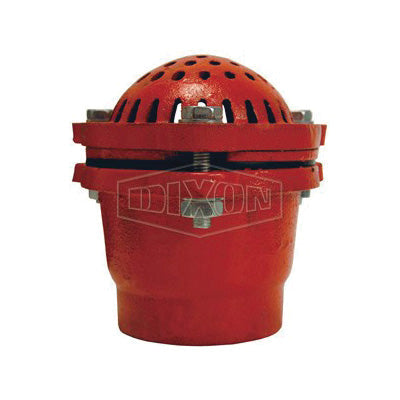

Dixon Valve DFVS20 Foot Valve

Product Description

The Dixon Valve DFVS20 is a foot valve designed for use with water suction hoses. This valve is essential in maintaining pump prime by preventing water from draining from the hose. Constructed from painted cast iron, it features a durable rubber seal and is specifically designed for vertical installation in water service applications.

• Constructed from painted cast iron for durability
• Female NPT (FNPT) end style for easy connection
• Nominal size of one and one-half inches

Product Highlights

The Dixon DFVS20 is ideal for water suction needs, providing reliability in various installation contexts.

Product Information

Standard Information

• Manufacturer Part Number: DFVS20
• Product Type: Foot Valve

Technical Specifications

• Body Material: Cast Iron
• Seal Material: Rubber
• End Style: FNPT
• Connection Type: FPT
• Nominal Size: 1-1/2 inches
• Dimensions: 4-5/8 inches Diameter x 4-1/16 inches Length
• Weight: 3.1 lbs
• Height: 4-1/16 inches
• Width: 4-5/8 inches
