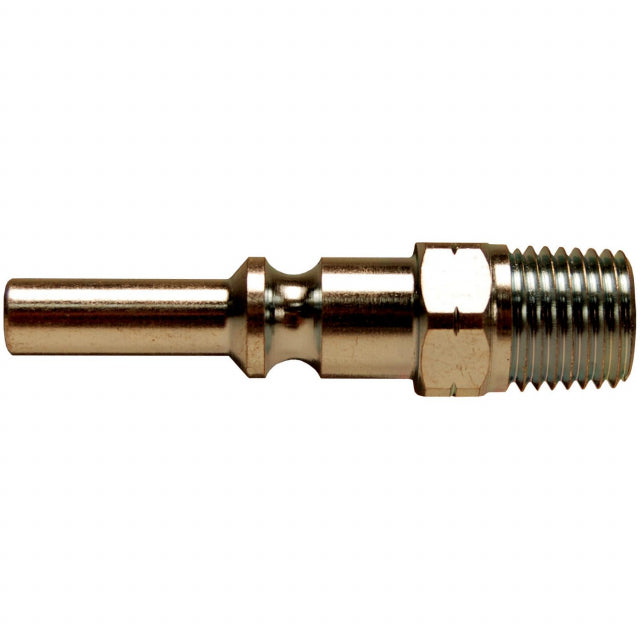

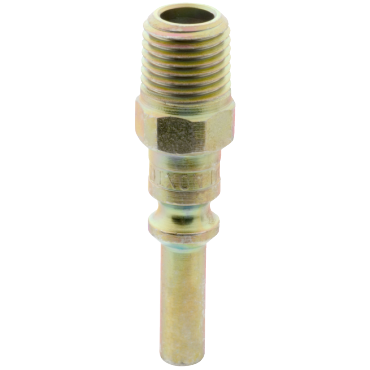

Dixon Valve DCP27 1/4 Male NPT x Lincoln S Plug (1/4)

Product Description

Dixon Valve DCP27 is a pneumatic Lincoln-style male plug with a 1/4 inch male NPT thread and 1/4 inch body size. Constructed of steel, it provides a flow rating of 37 CFM at 100 PSI and a pressure rating of 300 PSI at 70 F. The plug is interchangeable with the Lincoln interchange long stem series; couplers are semi-automatic and shut off when disconnected, and operating temperature range is -40 F to 250 F.

• Steel body with 1/4 in male NPT thread and 1/4 in body size
• Flow rating 37 CFM at 100 PSI; pressure rating 300 PSI at 70 F
• Interchangeable with Lincoln long stem series; semi-automatic couplers; operating temperature -40 F to 250 F

Product Highlights

1/4 in male NPT Lincoln interchange plug; steel construction; 300 PSI; 37 CFM at 100 PSI

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: DCP27

Technical Specifications

• Brand: Dixon Valve
• Manufacturer Part Number: DCP27
• Series: Air Chief
• Product Type: Male plug (pneumatic)
• Material: Steel
• Thread Type: NPT
• Thread Size: 1/4 in NPT (1/4-18)
• Body Size: 1/4 in
• Coupling Type: Plug / Male
• Standard Interchange: Lincoln interchange (long stem series)
• Flow Rating: 37 CFM at 100 PSI
• Pressure Rating: 300 PSI at 70 F (21 C)
• Working Pressure Range: 251 to 350 PSI
• Temperature Range: -40 F to 250 F (-40 C to 121 C)
• Shape (Orientation): Straight
• Ends Configuration: 1/4 in Male Lincoln QD Interchange; 1/4 in Male NPT
• Application: Pneumatic
• Compliance & Restrictions: California Proposition 65
• Weight: 0.06 lb
