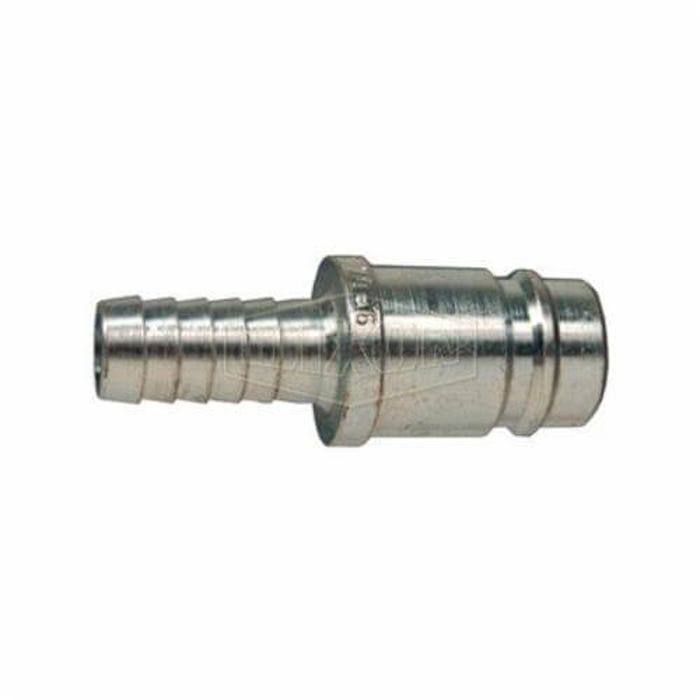

Dixon Valve DCP2545 Air Chief Industrial Quick Connect Plug

Product Description

The Dixon Valve DCP2545 is an Air Chief industrial quick connect plug designed for reliable air service. This plug features a quick connect plug x hose barb end style and is built from steel for durability. It can interchange with several manufacturers' designs, offering versatility in various applications.

• Pressure rating: 300 PSI
• Temperature range: -40 to 250 degrees Fahrenheit
• Nominal size: 1/2 x 3/8 inches

Product Highlights

This connector is ideal for HVAC systems, pneumatic tools, and other air handling applications.

Product Information

Standard Information

• Brand: Dixon Valve
• Manufacturer Part Number: DCP2545

Technical Specifications

• Type: Air Chief Industrial
• End Style: Quick Connect Plug x Hose Barb
• Material: Steel
• Nominal Size: 1/2 x 3/8 inches
• Pressure Rating: 300 PSI
• Temperature Rating: -40 to 250 deg F
• Length: 2 1/6 inches
• Dimensions: 11/16 inches OD
• Weight: 0.082 lbs
• Warranty: Limited
• Body Size: 3/8
• Hose ID: 1/2
• Flow: 70 CFM at 100 PSI
• Shape (Orientation): Straight
• Ends Configuration: 3/4 inches Male ISO-6150 Series B Industrial Pneumatic QD Interchange, 1/2 inches Hose Barb
• Height: 0.6875 inches
• Length (in): 2.167
• Package Quantity: 1/Each
• Specifications: MIL-C-4109F/A-A-59439
