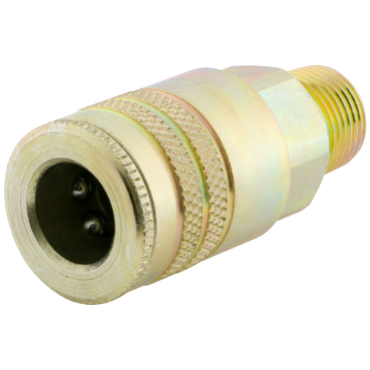

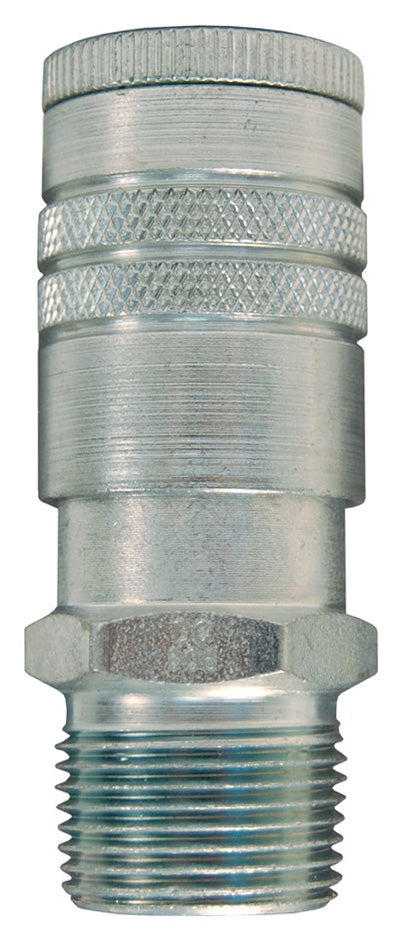

Dixon Valve DC906 Air Chief Industrial Semi-Automatic Male Threaded Coupler

Product Description

The DIXON VALVE DC906 Air Chief industrial coupler features a popular industrial design that interchanges with many other makes. This semi-automatic coupler connects when the sleeve is pulled and shuts off when disconnected. Designed for air service, it is compatible with Air Chief Automotive plugs.

• Semi-automatic - pull sleeve to connect
• Couplers shut-off when disconnected
• Interchanges with many other manufacturer's designs.

Product Highlights

The DC906 is a steel, semi-automatic, male threaded coupler suitable for air service.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: DC906

Technical Specifications

• Material: Steel
• Thread: NPT
• Body Size: 1/2"
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Thread Size: 3/4"
• Flow: 150 CFM at 100 PSI
• Pressure Rating: 300 PSI
• Shape (Orientation): Straight
• Series: DF-Series Industrial
• Pipe Thread: NPT / NPTF
• Interchange: Industrial Interchange
• Size: 1/2 in
• Connection: Male Pipe Thread
• End Type: Semi-Automatic
• Connection Type: Male NPT
• Temperature Range [Min]: -40 °F
• Body Material: Steel
• Component: Semi-Automatic Coupler
• Connection Size: 3/4
• MPN: DC906
• Min. Temp (°F): -40
• Max Temp (°F): 250
• Safety Notes: For air service only
• Flow [Max]: 150 CFM At 100 PSI
