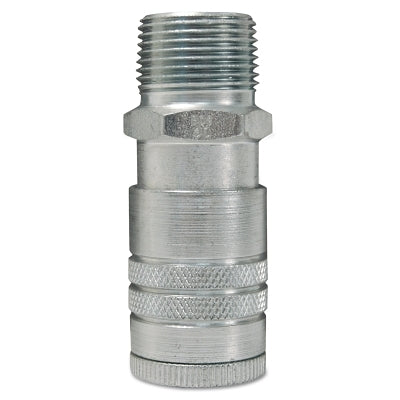

Dixon Valve DC9 Air Chief Industrial Semi-Auto Couplers 1/2 x 1/2 in (NPT) M

Product Description

The Dixon Valve DC9 Air Chief Industrial Semi-Auto Couplers are an essential component for comprehensive pneumatic systems. Featuring a 1/2 inch NPT male connection, these couplers integrate seamlessly with various air hose fittings.

• Interchangeable with many other makes
• Semi-automatic pull sleeve to connect
• Couplers shut-off when disconnected

Product Highlights

These couplers are constructed from brass, steel, and 303 stainless steel, ensuring durability and high performance. Suitable for operating pressures up to 300 psi and temperatures ranging from -40 degrees Fahrenheit to 250 degrees Fahrenheit. This makes them versatile for numerous industrial applications.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: DC9
• Category: Air Hose Fittings

Technical Specifications

• Body Material: Steel
• Body Size: 1/2 inch
• Connection Type: Male/Female
• Female Quick: 1/2 inch
• Flow at Pressure: 150 CFM at 100 psi
• Height: 3.8 inches
• Male Thread: 1/2 inch NPT
• Operating Pressure Max: 300 psi
• Operating Temperature Max: 250 degrees Fahrenheit
• Operating Temperature Min: -40 degrees Fahrenheit
• Thread Size: 1/2 inch
• Weight: 0.4 lb
