Dixon Valve dc242 h s automotive c 1/4x1/4 pack of 10

Product Description

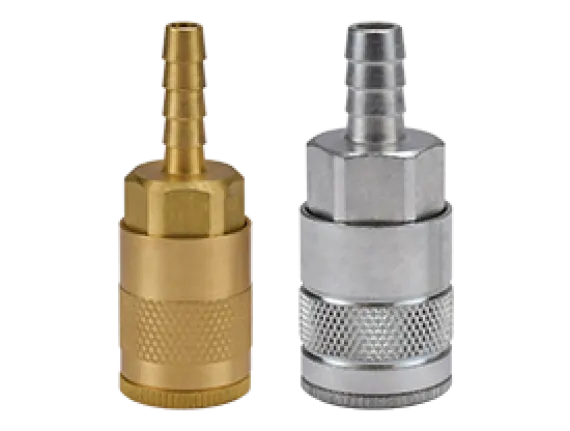

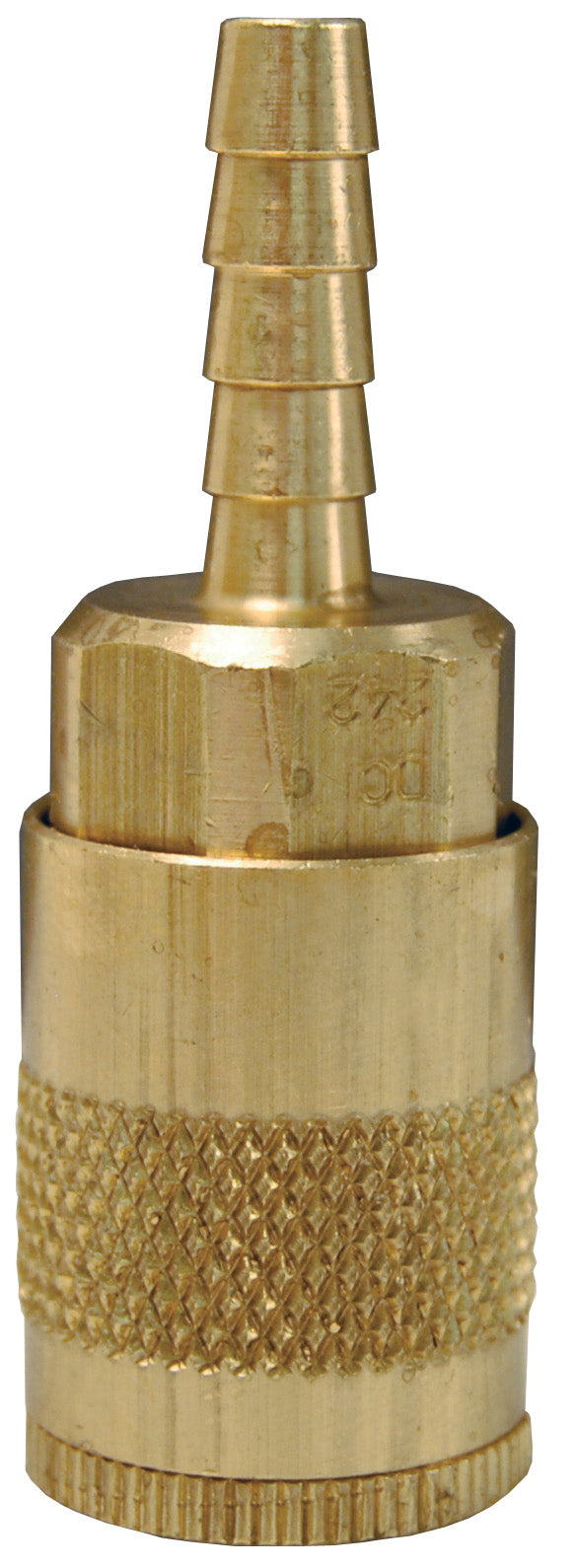

The DIXON VALVE DC242 is an automotive quick-connect coupler designed for pneumatic applications. It features a 1/4 inch body size and 1/4 inch hose ID, constructed from brass for durability. This coupler is capable of handling a pressure rating of 300 PSI and operates within a temperature range of -40°F to 250°F. It provides a flow of 37 CFM at 100 PSI, making it suitable for various automotive and industrial air line connections.

• Semi-automatic operation: pull sleeve to connect.
• Couplers shut-off when disconnected.
• Constructed from durable brass.

Product Highlights

This coupler is interchangeable with popular automotive quick-connect fittings, offering versatile use in pneumatic systems.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: DC242

Technical Specifications

• MPN: DC242
• Brand: DIXON VALVE
• Category 1: PNEUMATICS
• Category 2: COMPRESSORS BLOW GUNS HOSES & FITTINGS
• Material: Brass
• Body Size: 1/4"
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Hose ID: 1/4"
• Flow: 37 CFM at 100 PSI
• Pressure Rating: 300 PSI
• Quantity: 10 per pack
• Connection Type: Male Barb and Female Quick
• Male Barb Size: 1/4 in
• Female Quick Size: 1/4 in
