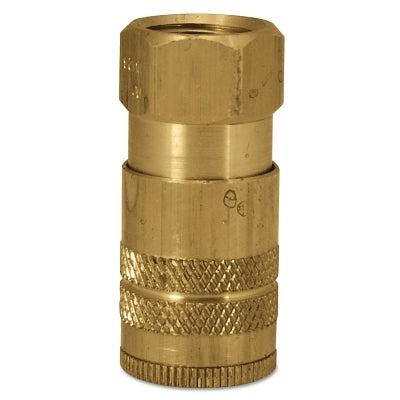

Dixon Valve DC2023 Air Chief Industrial Semi-Auto Coupler, Pipe Thread, 1/4 in Body Size, 3/8 in (NPT) F

Product Description

The Dixon Valve DC2023 is an air chief industrial semi-auto coupler designed for reliable connection in air hose fittings. This coupler has a pipe thread design and a body size of one-fourth inch with a three-eighths inch female NPT connection. It is crafted from durable brass and is compatible with many other makes, ensuring versatility and ease of use in various applications.

• Interchangeable with many makes
• Semi-automatic pull sleeve to connect easily
• Shuts off when disconnected for safety

Product Highlights

This coupler features a semi-automatic mechanism that simplifies the connection process and reduces the risk of leaks. It is used primarily in pneumatic systems for air hoses and provides reliable performance under pressure.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Country of Origin: US

Technical Specifications

• Body Material: Brass
• Body Size: 1/4 in
• Connection Type: Female/Female
• Female Quick Size: 1/4 in
• Female Thread: 3/8 in (NPT)
• Flow Rate: 37 ft³/min @ 100 psi
• Operating Pressure: Maximum 300 psi
• Operating Temperature: -40°F to 250°F
