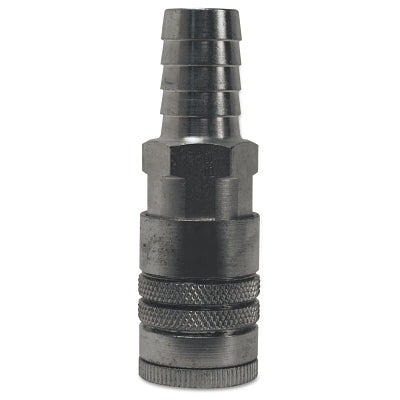

Dixon Valve DC1045 Air Chief Industrial Semi-Auto Coupler Standard Hose Barb 1/2 in ID 1/2 in Body Size Steel

Product Description

The Dixon Valve Air Chief Industrial Semi-Auto Coupler DC1045 is a reliable air hose fitting designed for industrial use. Featuring a standard hose barb with a 1/2 inch inside diameter and 1/2 inch body size, this steel coupler is perfect for a variety of pneumatic applications.

• Compatible with many other makes
• Convenient semi-automatic pull sleeve to connect
• Shut-off mechanism when disconnected

Product Highlights

This Dixon Valve coupler is made from durable steel and ensures secure and efficient air hose connections. It incorporates a semi-automatic pull sleeve for ease of use and shuts off automatically when disconnected to prevent air leakage.

Product Information

Standard Information

• Category: Air Hose Fittings
• Manufacturer: Dixon Valve
• Country of Origin: US

Technical Specifications

• Body Material: Steel
• Body Size: 1/2 inch
• Flow at Pressure: 150 cubic feet per minute at 100 psi
• Height: 3-15/16 inches
• Hose ID Max: 1/2 inch
• Male Barb/Hose: 1/2 inch
• Operating Pressure Max: 300 psi
• Operating Temperature Max: 250 degrees Fahrenheit
• Operating Temperature Min: -40 degrees Fahrenheit
• Quantity: 1 EA
• Type: Semi-Automatic Pull Sleeve to Connect Coupler; Standard Hose Barb
