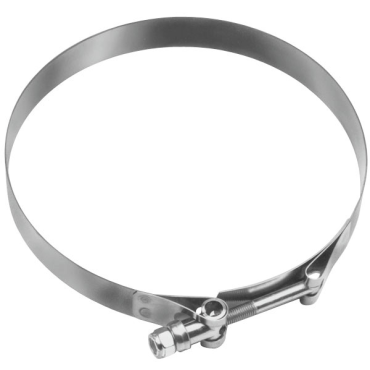

Dixon Valve & Coupling TBC200 T-Bolt Hose Clamps

Product Description

The Dixon Valve & Coupling TBC200 is a reliable T-Bolt Hose Clamp designed for various applications. This clamp is compatible with hoses that have an outer diameter range of one and seven-eighths inches to two and one-sixteenth inches. It is constructed from durable 300 series stainless steel, ensuring resistance to corrosion and durability over time.

• Torque: 70 in lb
• Material: 300 Series Stainless
• Hose O.D. Range: 1 7/8 to 2 1/16

Product Highlights

This product combines easy usage with strong holding power. The T-Bolt buckle design allows for secure fastening, making it suitable for high-pressure applications.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Hazardous Material: No

Technical Specifications

• Type: Band & T-Bolt Buckle
• Locking Type: T-Bolt Buckle
• Material: 300 Series Stainless
• Hose O.D. Range: 1 7/8 to 2 1/16 inches
• Thickness Specification: 0.0250 inches
• Bolt/Screw Material: Carbon Steel
• Weight: 0.122 lbs
