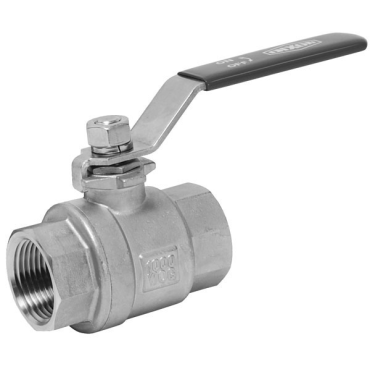

Dixon Valve & Coupling SSBV150 Ball Valves 1 1/2 in NPT Replacement MPN

Product Description

The Dixon Valve & Coupling SSBV150 is a ball valve designed for use in various applications including water, oil, and gas. This valve features a blow-out proof stem and a full port, ensuring reliable performance. It has an inlet and outlet size of one and one-half inches NPT, suited for different piping systems.

• 316 stainless steel construction
• Blow-out proof stem
• Full port design

Product Highlights

This ball valve is ideal for high-pressure systems with a pressure rating of one thousand psi. Its female thread inlet type allows easy installation in compatible piping setups.

Product Information

Standard Information

• Part Number: 101896542
• Availability: Ready To Ship

Technical Specifications

• Stem Material: 316 Stainless Steel
• Ball Material: 316 Stainless Steel
• Inlet Size: 1 1/2 in NPT
• Inlet Type: Female Thread
• Opening Type: Lever
• Connection Type: Female/Female
• Body Material: 316 Stainless Steel
• Temperature Range: -20 °F
• Designated Fluid: Water, Oil, Gas
• Seal Material: Teflon
• Operating Pressure: 1000 psi
• Outlet Size: 1.5 in
• Handle Material: 304 Stainless Steel
• Pressure Rating: 1000 PSI WOG
• Weight: 4.25 LB
