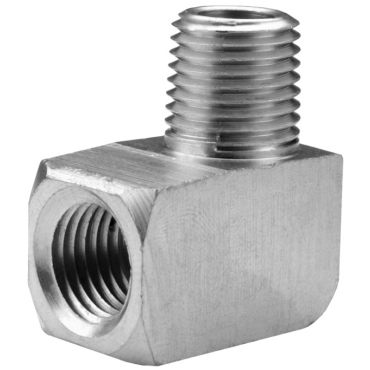

Dixon Valve & Coupling SE4F4M Brass Fitting 1/2 Male Pipe Thread to 1/2 Female Pipe Thread

Product Description

The Dixon Valve & Coupling SE4F4M is a brass fitting designed for connecting 1/2 male pipe threads to 1/2 female pipe threads. This fitting is suitable for various applications including pneumatic systems, water, oil, and low-pressure lubrication lines.

• Brass construction for compatibility with multiple materials.
• Thread sealant or Teflon tape recommended for a reliable seal.
• Operates effectively under temperatures ranging from negative sixty degrees Fahrenheit to two hundred degrees Fahrenheit.

Product Highlights

The SE4F4M fitting offers robust performance in pneumatic and hydraulic systems.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 102217685

Technical Specifications

• End Types: NPT
• Male Pipe Size: 1/2 in
• Female Pipe Size: 1/2 in
• Material: CA360 Brass
• Fitting Type: Elbow
• No. of Ends: 2
• Working Pressure [Max]: 300 psi
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -60 °F
