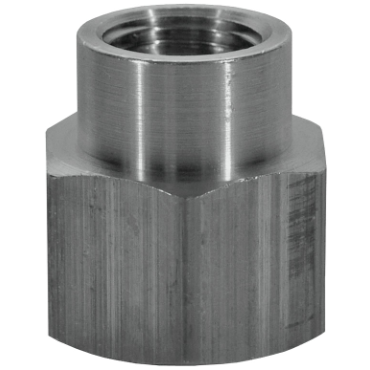

Dixon Valve & Coupling RC3F2F Brass Fitting

Product Description

The Dixon Valve & Coupling RC3F2F is a brass fitting designed to connect pipes in various applications. This reducer coupling features female pipe threads of one quarter inch and three eighths inch sizes.

• Constructed from CA360 brass for durability.
• Suitable for a variety of media including water, oil, and gases.
• Capable of withstanding a maximum working pressure of 300 psi.

Product Highlights

The RC3F2F fitting allows safe connections between aluminum, copper, steel, and iron pipes. Recommended with thread sealant or Teflon tape for leak prevention.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 102010871

Technical Specifications

• Fitting Type: Coupling
• Fitting Angle: Straight
• End Size: 1/4 NPT(f), 3/8 NPT(f)
• End Types: NPT
• Temperature Range [Min]: -60 °F
• Temperature Range [Max]: 200 °F
• Material: CA360 Brass
• Actual Fitting Type: Reducer Coupling
• SAE Reference No.: 130138
• Female Pipe Size A1: 1/4 in
• Working Pressure [Max]: 300 psi
• No. of Ends: 2
• Female Pipe Size: 3/8 in
• Application: Grease, Fuels, LP & Natural Gas, refrigeration, instrumentation, hydraulic systems
• Weight: 0.12 LB
