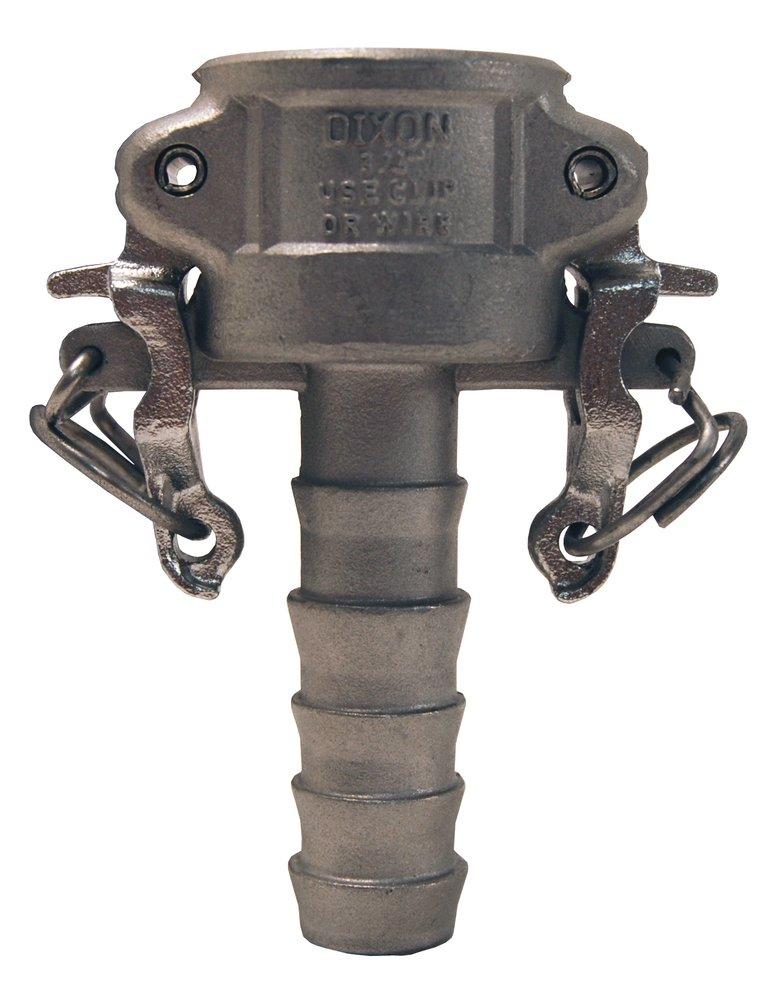

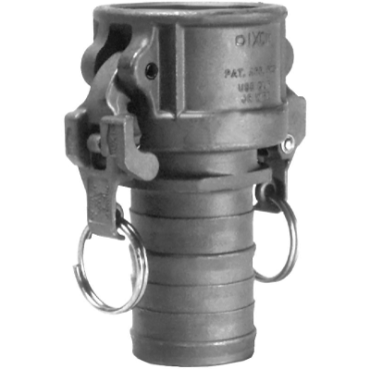

Dixon Valve & Coupling RC200EZNO EZ Boss-Lock Cam & Groove Notched Type C Coupler x Hose Shank

Product Description

Dixon Valve & Coupling offers the RC200EZNO EZ Boss-Lock Cam & Groove Notched Type C Coupler x Hose Shank. This coupling features a notched design that allows easy removal from damaged hoses without harming the fitting. After re-evaluation, the fitting can be reused with a new ferrule and installed in another hose.

• Constructed from durable 316 stainless steel
• Designed for high-pressure applications with a maximum of 250 PSI
• Compatible with hose shank connections

Product Highlights

Notched design allows for quick and effective repairs.

Product Information

Standard Information

• Type: Female Coupler x Hose Shank
• Material: 316 Stainless Steel

Technical Specifications

• Size Designation: 2 in
• Operating Pressure [Max]: 250 PSI
• Seal Material: Buna-N
• Weight: 1.793 LB
• Coupling Type: EZ Boss-Lock Type C with Notched Shank
• End Type: Hose Shank
• Connection Type: Female Coupler x Hose Shank
