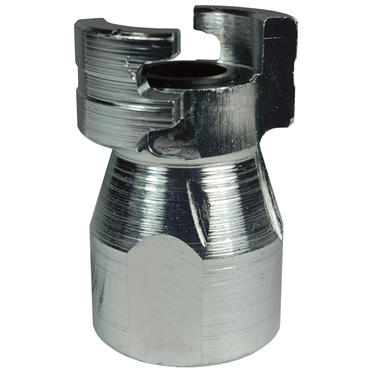

Dixon Valve & Coupling P4F6 | Dual Lock Quick-Acting Coupling | 3/4

Product Description

The Dixon Valve & Coupling P4F6 is a dual lock quick-acting coupling designed for reliable performance. This coupling features a spring-loaded interlocking engagement system that ensures a secure connection.

• 3/4 inch Female NPT thread
• 1/2 inch body size
• Compatible with National A, Perfecting P, and Thor PHC series couplings

Product Highlights

Utilized in various pneumatic applications, this coupling maintains full-line pressure while allowing for efficient air flow.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101939012

Technical Specifications

• Series: Thor Interchange
• Body Size: 1/2 inch
• Connection Type: Female Pipe Thread
• Body Material: Trivalent Chrome Plated Steel
• Female Thread: 3/4 inch NPT
• Burst Pressure [Min]: 4,800 psi
• Pressure Rating: 300 psi
• Component: Plug
• Flow (CFM) at 0.4 Bar: 250 ft³/min
• Connection Size: 3/4 inch
• Operating Pressure [Max]: 300 psi
• Weight: 0.48 lb
